STIHL Trimmer and Brushcutter Common Features

Once upon a time, starting gasoline-powered outdoor power equipment could be more intimidating than actually doing the job. The Easy2Start™ system eliminates the need for a strong pull of the starting cord. Some models feature a simplified starting procedure that reduces the number of steps by almost half. Our trimmers and brushcutters are easy to use and ready when you are.

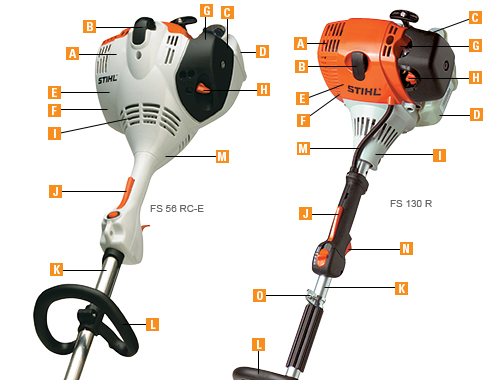

COMMON FEATURES

  Protected Spark Arrestor Muffler has large baffles which reduce noise level and contains a screen designed to reduce the emission of sparks.

  Protected Spark Plug is protected yet easy to change.

  Air Filter Cover is easy to remove for fast and easy filter cleaning or replacement.

 Upright Translucent Fuel Tank allows the operator to easily check the fuel level before starting work. Upright position makes it easier to refill.

  Smooth Clean Design has no rough edges to snag on clothing or brush.

 High-Tech Polymer Housings are lightweight, withstand greater impact, and are corrosion-resistant.

  Purge Pump Primer lets you prime the carburetor without flooding it.

  Protected Choke Lever/Knob helps prevent damage.

  Heavy-Duty Centrifugal Clutch is designed to reduce slippage.

 Throttle Trigger Interlock must be depressed before the trigger can be activated.

 Fully Lined Drive Shaft provides smooth operation and less vibration.

  Adjustable Front Handle adjusts for comfort.

 Protected or Enclosed Control Cables eliminate dangling and loose wires.

  Protected Throttle Trigger helps prevent damage. Professional models only.

 Clip for Strap or Harness.

OTHER COMMON FEATURES NOT DIAGRAMMED

 Long-Life Cylinders provide maximum wear life, better cooling and lubrication, more power output.

 Electronic Ignition provides easier starting and smoother running.

 Superior Balance and Design help reduce operator fatigue and make handling easy.

 Family Engine Concept includes many interchangeable components across model lines, enabling fast field fixes.

ADDITIONAL FEATURES

These features are found on some STIHL power tools.

 Easy2Start™ System (E): This starting system reduces the strength and effort needed to start the engine.
Available on select models.

 ElastoStart™ Handle has a built-in shock absorber for smoother starting.

 IntelliCarb™ Compensating Carburetor measures air on clean side of air filter and adjusts metering diaphragm in carburetor. Keeps RPM level even when filter begins to clog.

 Interchangeable Gearboxes fit many models, allowing for one machine to do a variety of tasks.

 AutoCut^® Trimming Head is a proven and dependable TapAction™ cutting head. Other cutting attachments available on most models.

*STIHL trimmers, brushcutters, and lawn edgers have many common features. However, all models may not have all the features shown here.
