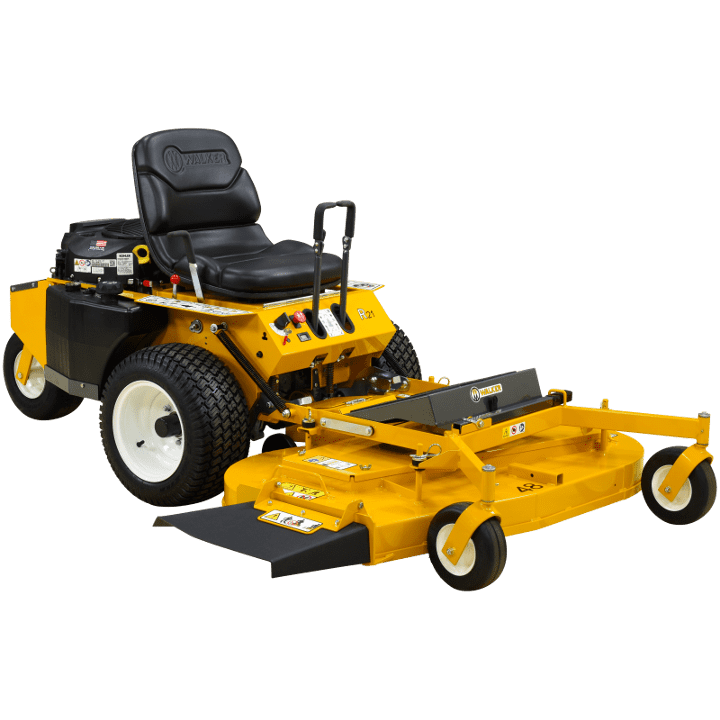

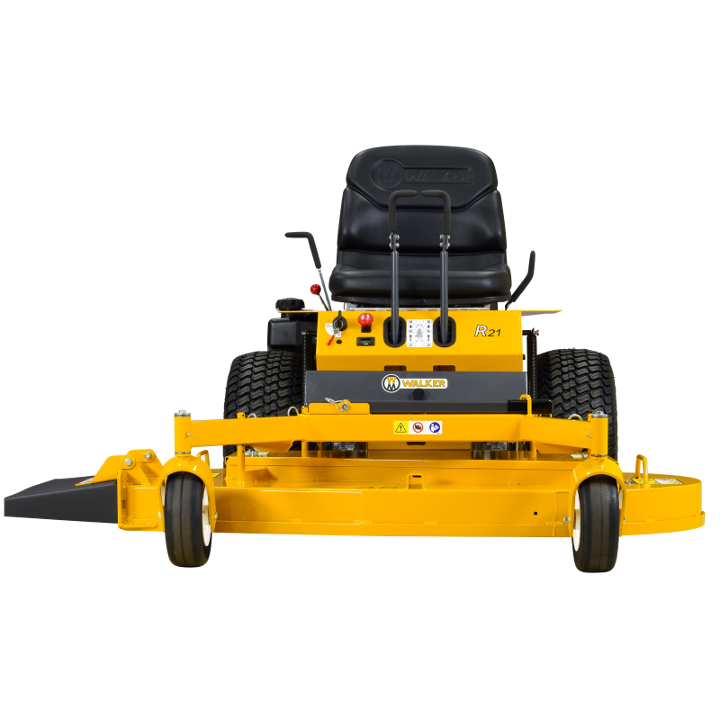

Walker R21 Tractor and Mower
The Walker R21 is the ideal walker mower for residential properties. Its belt-driven mower blades ensure smooth and quiet operation while maintaining the distinct advantages of the Walker mower. Fast, easy, and beautiful mowing is the standard, bringing the premium Walker experience to your home.
Walker R21 Model Overview

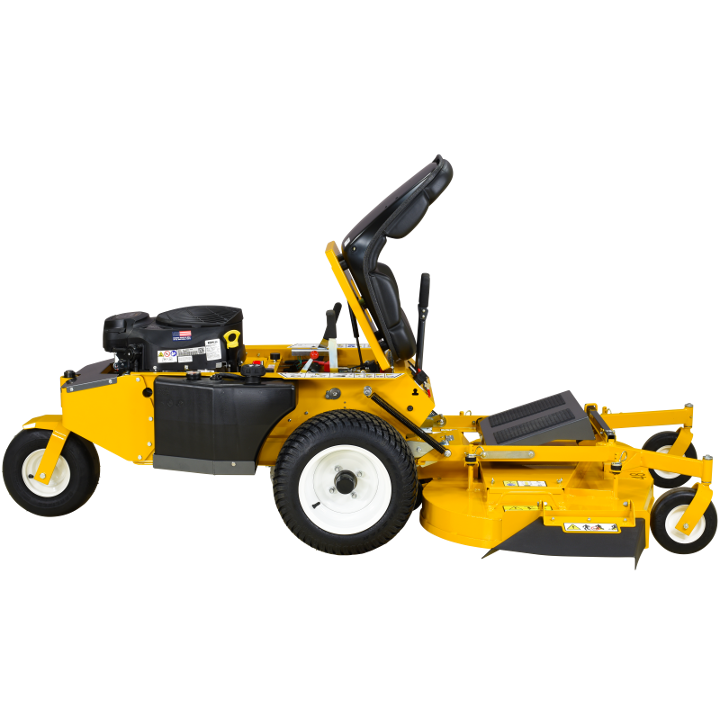

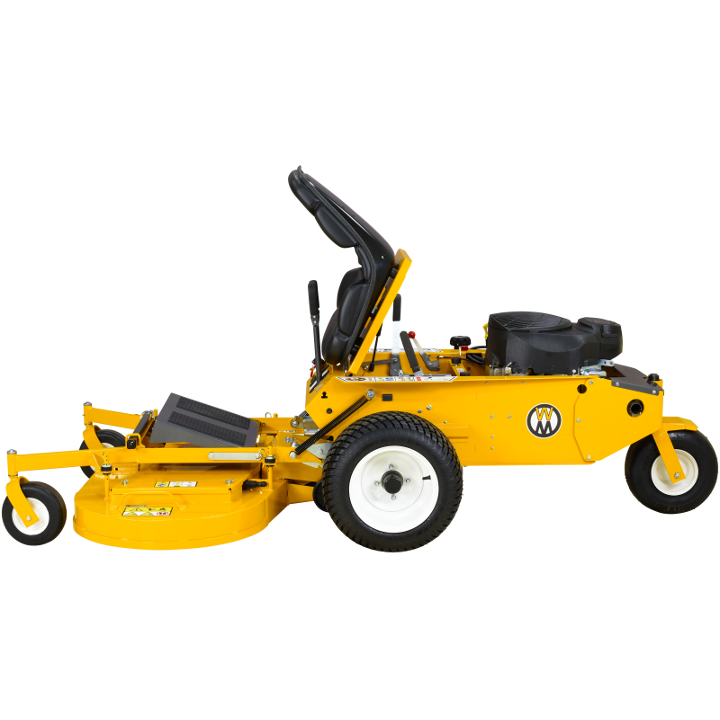

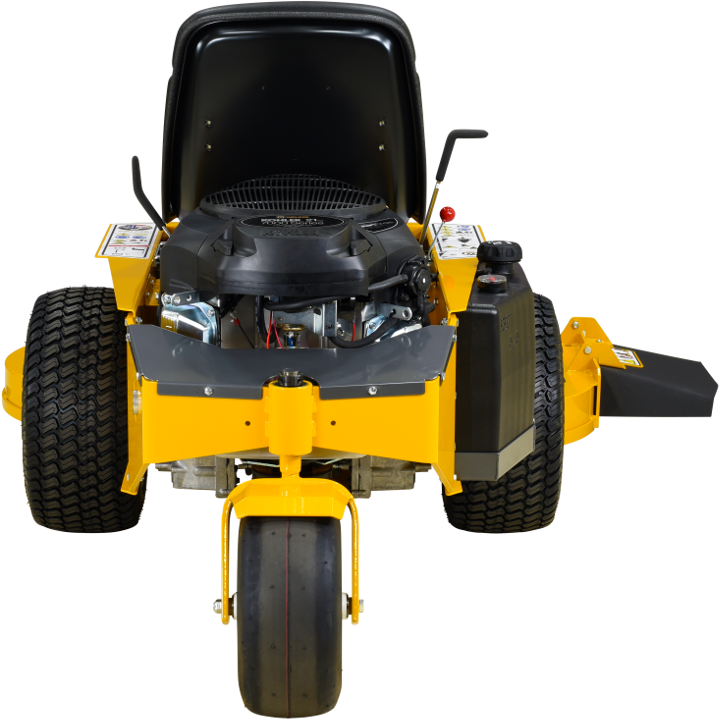

The Walker R21 is the perfect machine for residential properties. It has a powerful 21 HP Kohler engine featuring Smart-Choke technology, making it a premium mower explicitly designed for residential owners. Additionally, the tilt-open seat and tilt-up deck provide easy maintenance access.
Type: Non-Collection
Power: 21 HP
Engine: Kohler KT620
Ideal Application:
Residential Properties
Key Attributes: Agile, Accessible, Compact
Standard Options: 18 x 8.5-8 Turf Tire, Standard Seat
What gives the Walker Mower the advantage over other brands?
Specifications
Manufacturer: Kohler
Model: KT620
Displacement: 660 cc (40.3 cu. in.)
Max Power: 21 HP @ 3600 RPM
Governed RPM: 3600
Max Torque: 35.9 ft-lbs
Cooling System: Air
Fuel: Gasoline (unleaded – min. 87 octane)
Fuel Capacity: 3 gal (11.36 liter)
Battery: 12V, 300CCA
Charging System: Flywheel Alternator
Charging Output: 18 Amp DC (Regulated)
Manufacturer/Model: Dual Independent Hydro-Gear ZT-2200 Integrated Transaxles
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h): 0-6 MPH (0-10 km/h)
Neutral: Transaxle Release by Manual Dump Valve
PTO Shaft: Single Belt
Blade Drive Clutch and Brake: Electric Clutch [Stops Blades within Five (5) seconds of Disengagement]
Note: An optional Accelerator® Grass Catcher is available for collection mowing
Grass Catcher Capacity: 31 Gal / 3.3 Bu / 116 L
Recommended Cut Width: Side Discharge: 42 to 54 in. (107 to 137 cm), Mulch: 42 to 48 in. (107 to 122 cm)
Cutting Height: 1.5 to 4 in (4 to 10 cm)
Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Drive: 18 x 8.50-10 (Pneumatic 4-Ply, Low Profile)
Tailwheel: 13 x 6.50-6 (Pneumatic 4-Ply)
Deck Caster: 8 x 3.00-4 (Semi-Pneumatic)
LENGTH
Tractor with S48 deck: 96 in (244 cm)

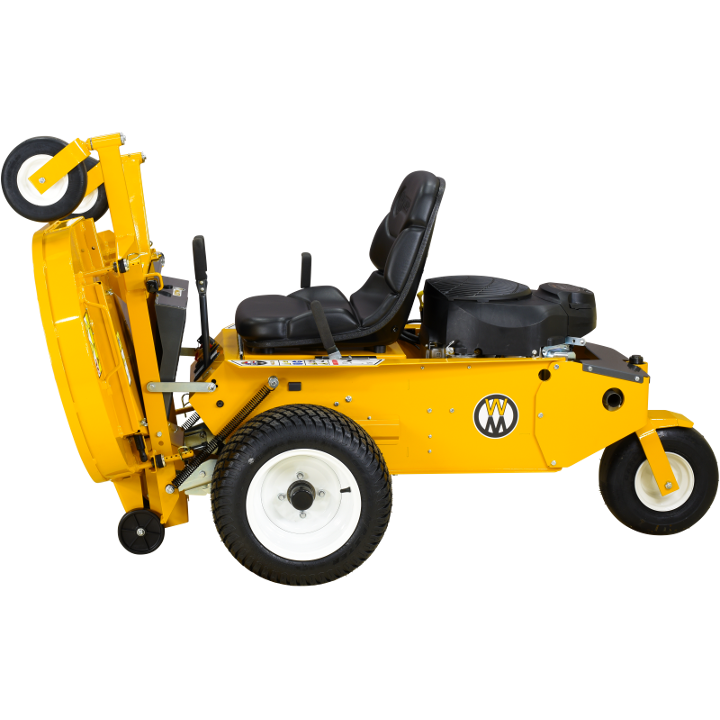

Tractor with deck tilted: 74 in (188 cm)
Tractor wheel base: 39 in (99 cm)
WIDTH
Tractor Only (Outside Tire): 39 in (99 cm)
Tractor with S48 deck: 60 in (152.4 cm)
HEIGHT
Tractor: 42 in (107 cm)
WEIGHT
Tractor Only: 404 lbs (183 kg)
Tractor with S48 deck: 593 lbs (269 kg)
Entire Tractor: 3 Years
Drive Train: 3 Years or 300 Hrs (whichever occurs first)*
Engine: 3 Years
*Gear Axle Assembly, Hydrostatic Transmissions for C, D, T and Hydrostatic Transaxles for B, H, S, R
