Walker Multi Deck – DU48-3 48″ Center or Side Discharge Mower Deck

Walker Multi Deck – U48 48 Inch Multi-Deck

The Walker Multi Deck is a single mower solution for manicured turf and rougher field-type grass. It is your way of tackling collection and side discharge mowing applications. The Multi-Deck allows you to effectively match the deck configuration to varying property types and grass conditions throughout the growing season. Whether collecting thick, spring turf or side-discharging dryer-season grass, the Multi-Deck is an easy and cost-effective solution for your unique needs.

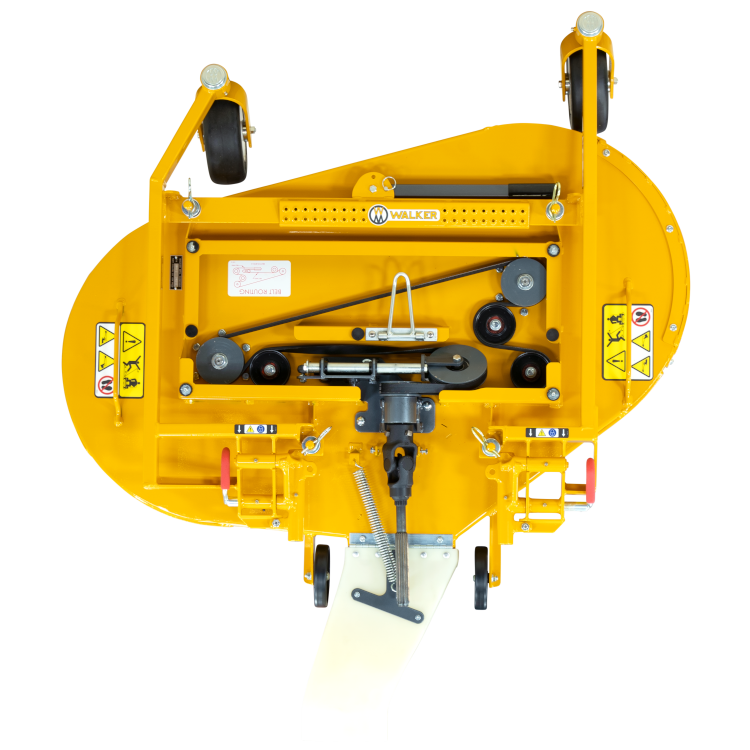

The Multi-Deck key feature is the belt drive design, which delivers reduced noise, improved durability, and standard rotating blades that allow both collection and side-discharge mowing. The unique belt tensioner mechanism utilizes a gas spring dampener for increased belt life and provides belt changes without requiring tools.

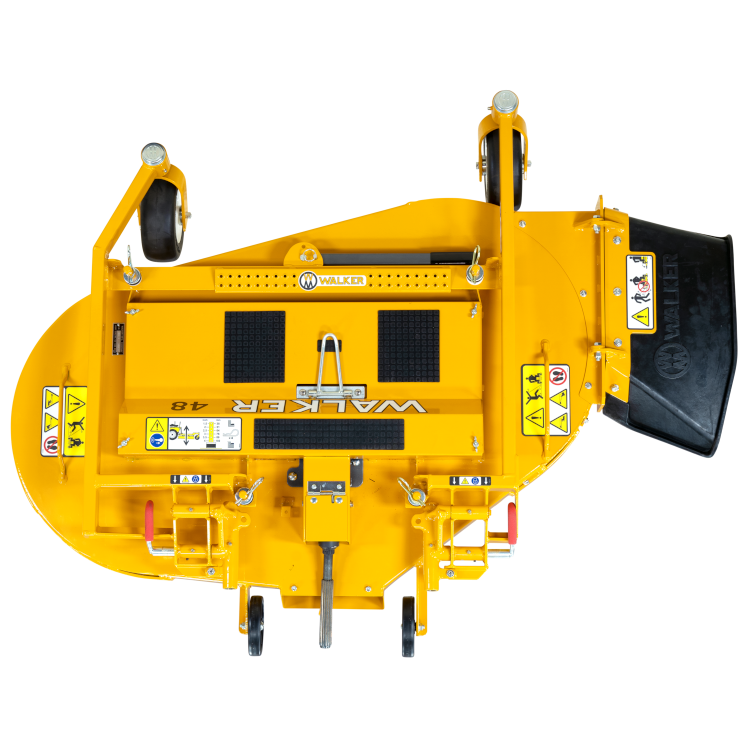

The Multi-Deck’s impressive collection capability, combined with Walker’s proven Grass Handling System® (GHS), makes grass collection fast, easy, and enjoyable. To convert the deck from collection to discharge, remove the end cap from the deck housing and install the collection chute baffle and side discharge chute.

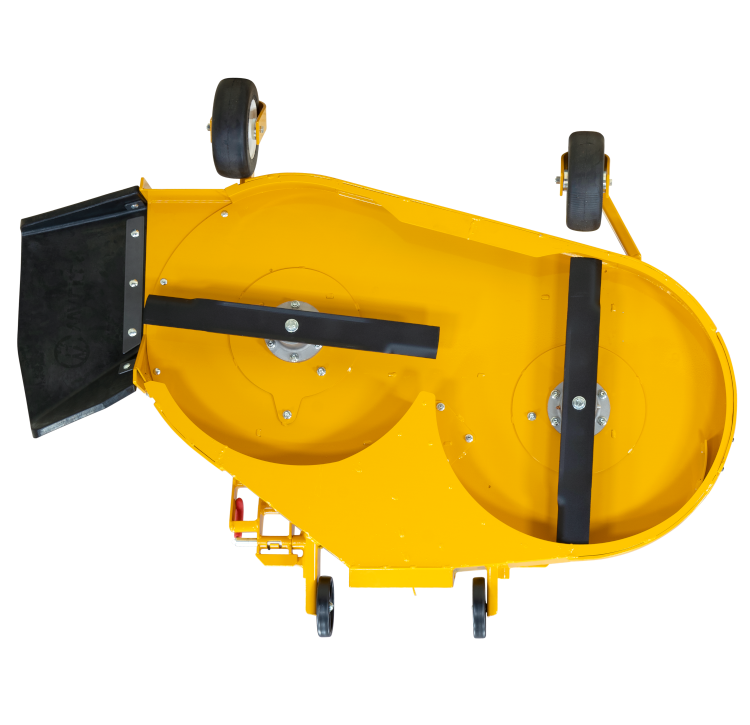

Like other Walker decks, the deck housing, blades, and underside are accessible with the tilt-up function. The left caster tire’s inset position is aligned with the left mowing blade to optimize cut quality while enhancing trimming performance on the mowing deck’s left side. The Multi-Deck uses Walker’s torsion-flex carrier frame to articulate and follow the ground contour for a beautiful cut freely.

Type: Collection/Side Discharge
Part: DU48-3
Cutting Width: 48 in (122 cm)
Blades: 2
Ideal Application: Versatile, high quality, and durable solution for operators needing a single mower capable of a high-performance collection with side discharge function.
