Description

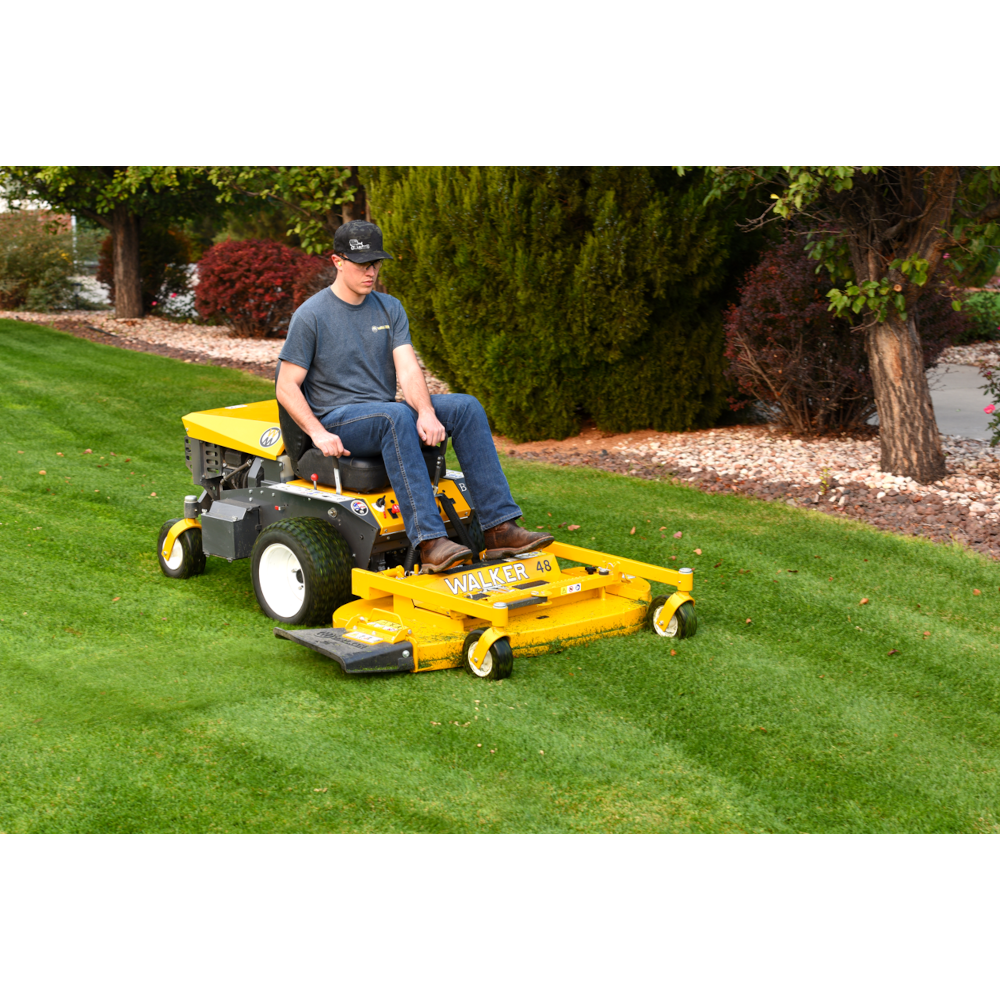

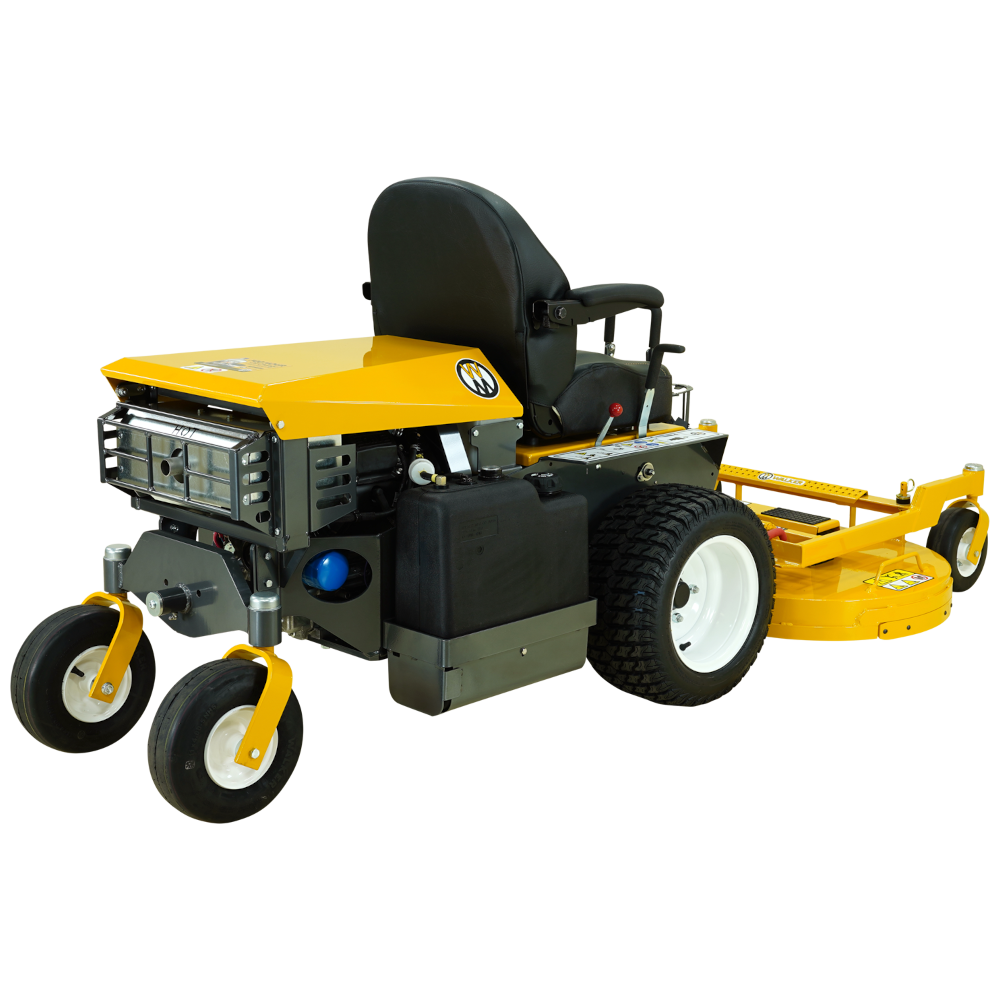

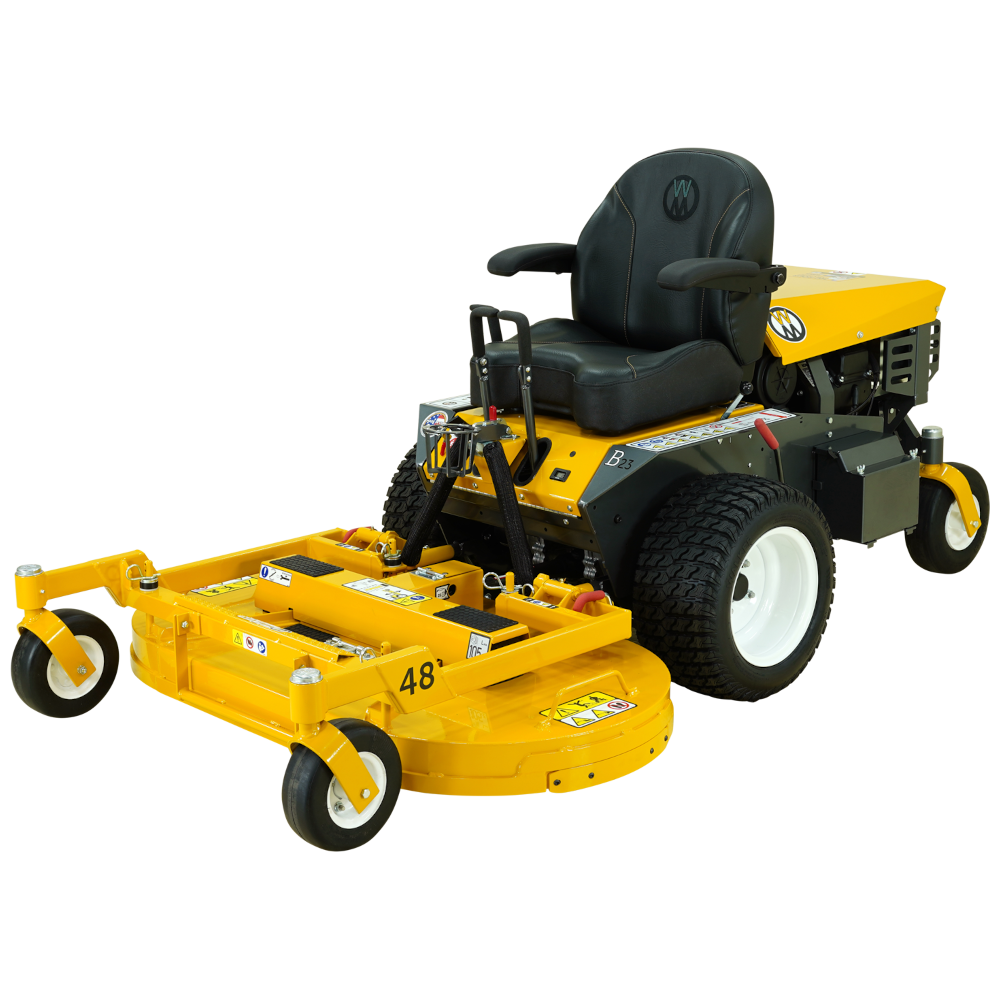

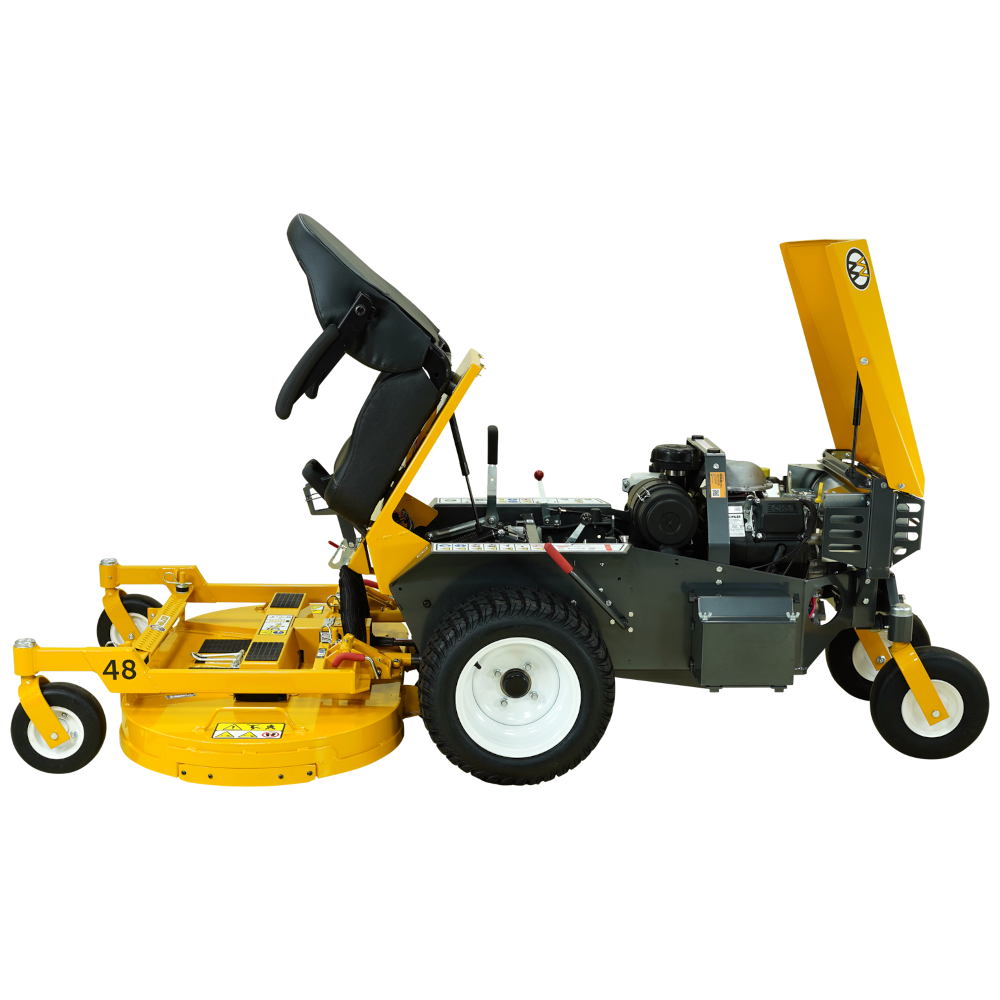

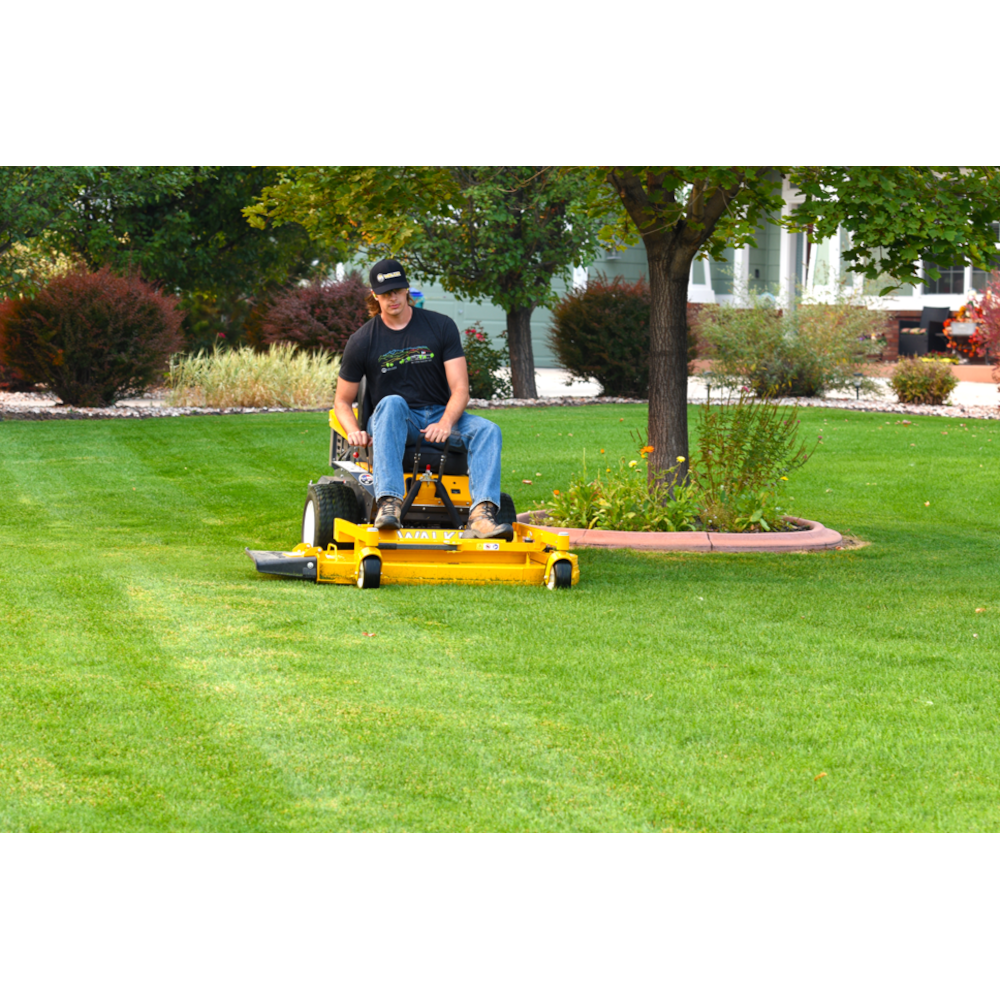

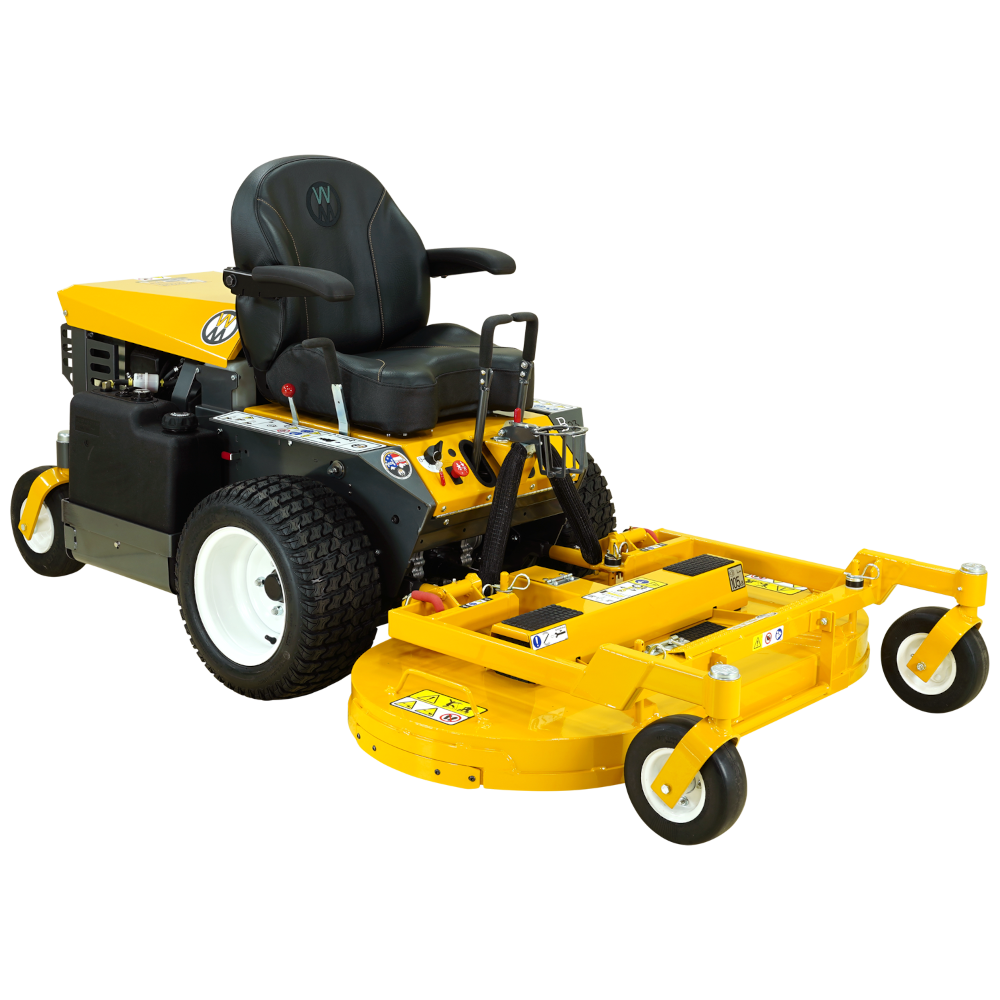

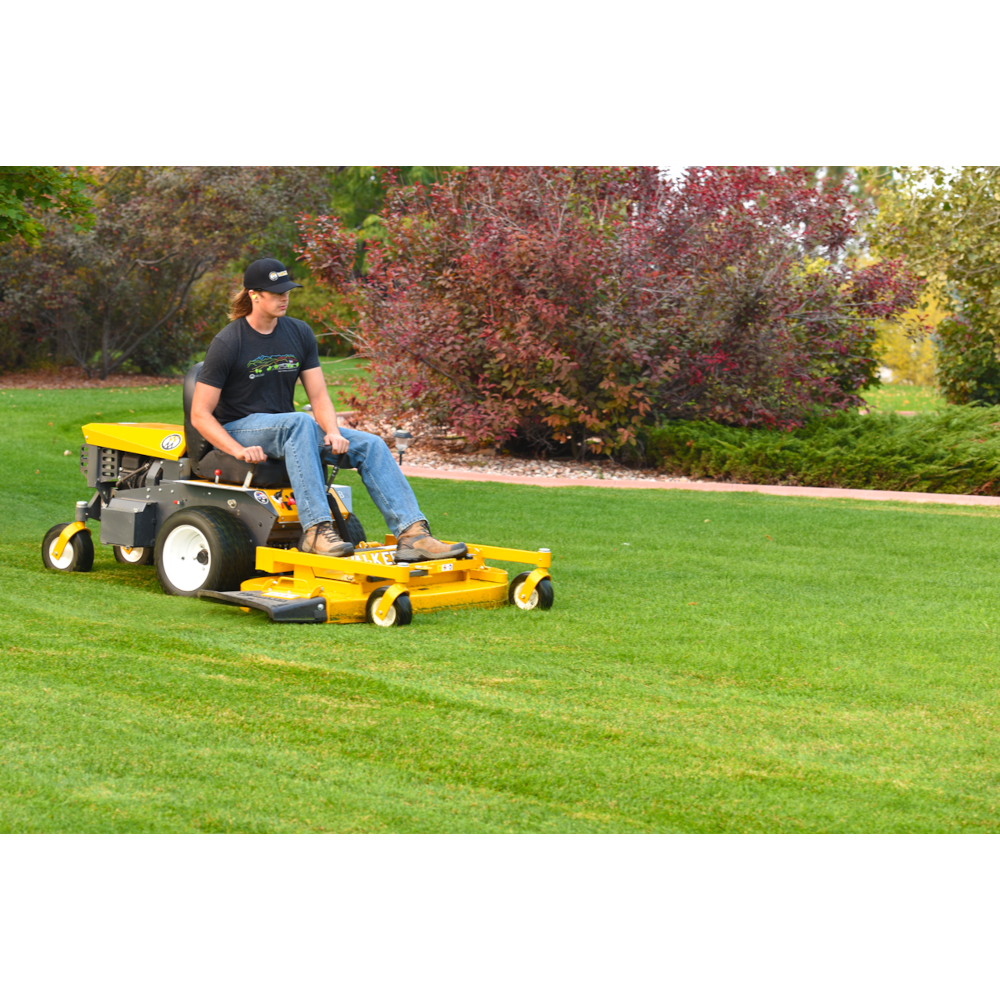

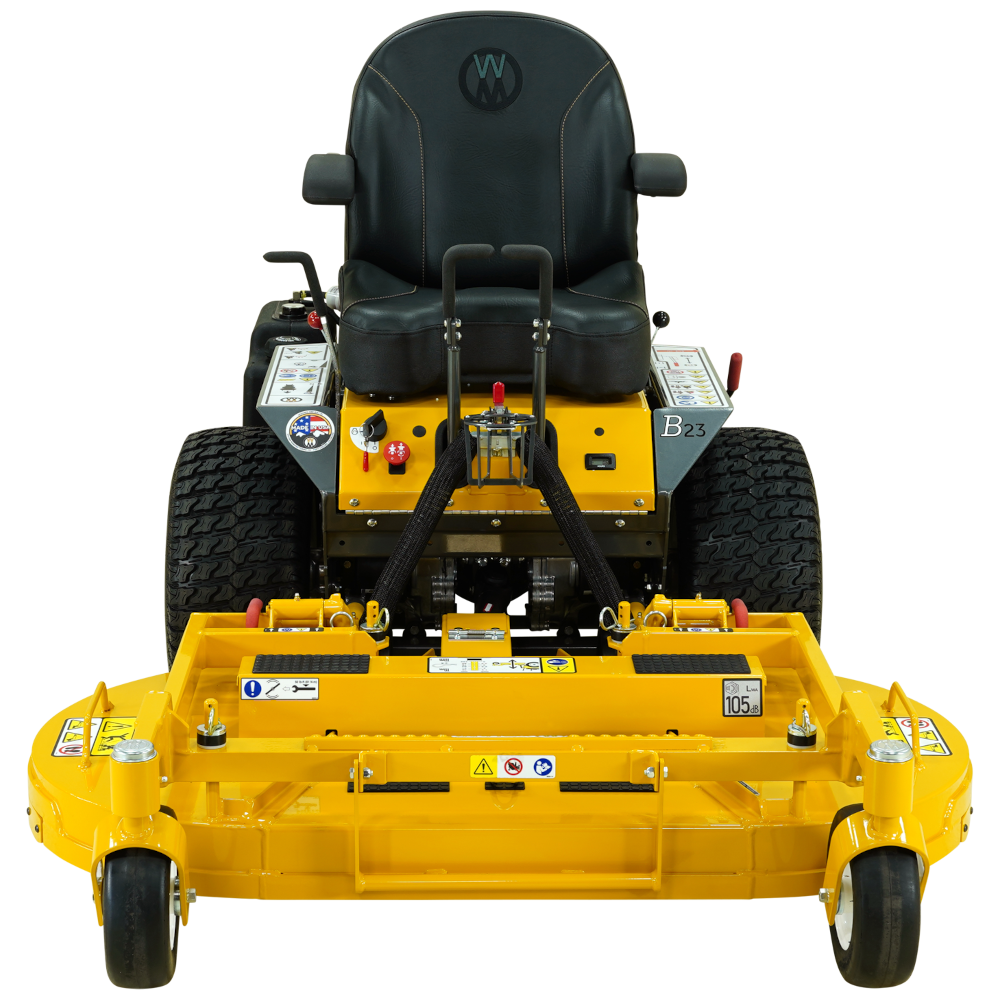

Walker B23 Tractor / Walker B23 Mower

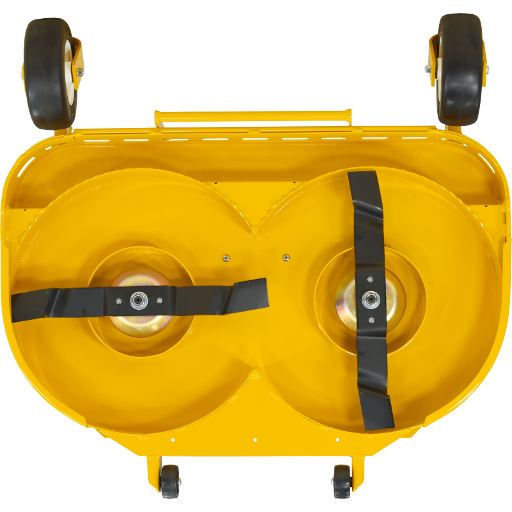

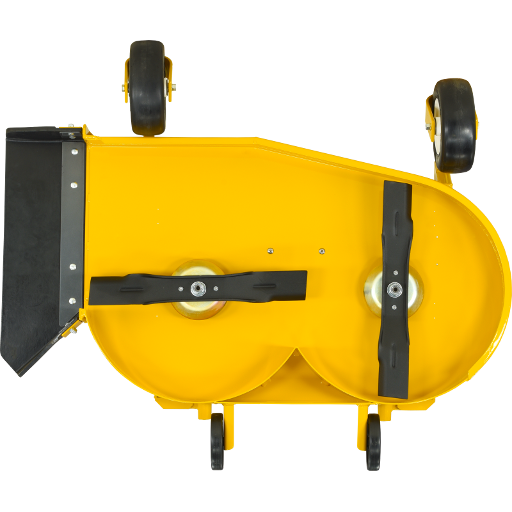

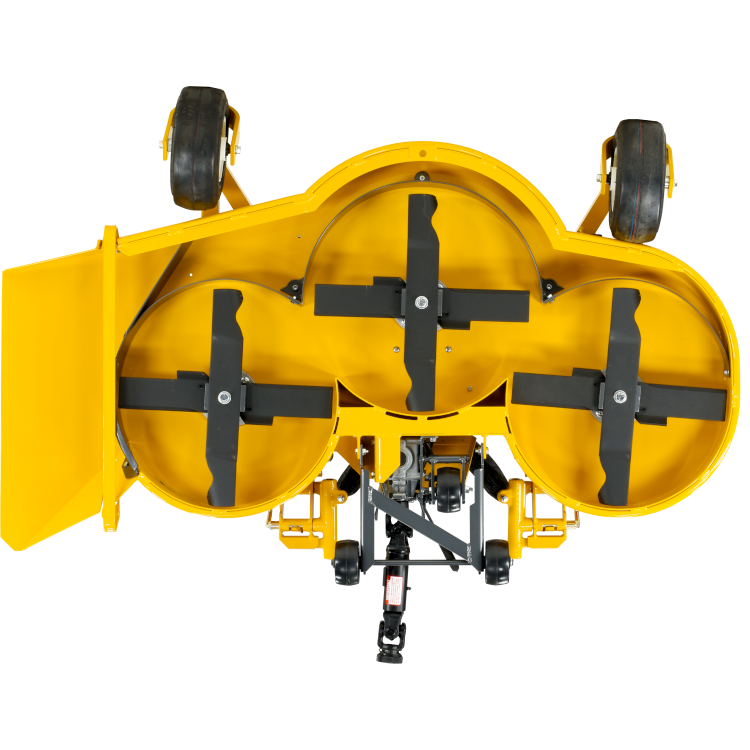

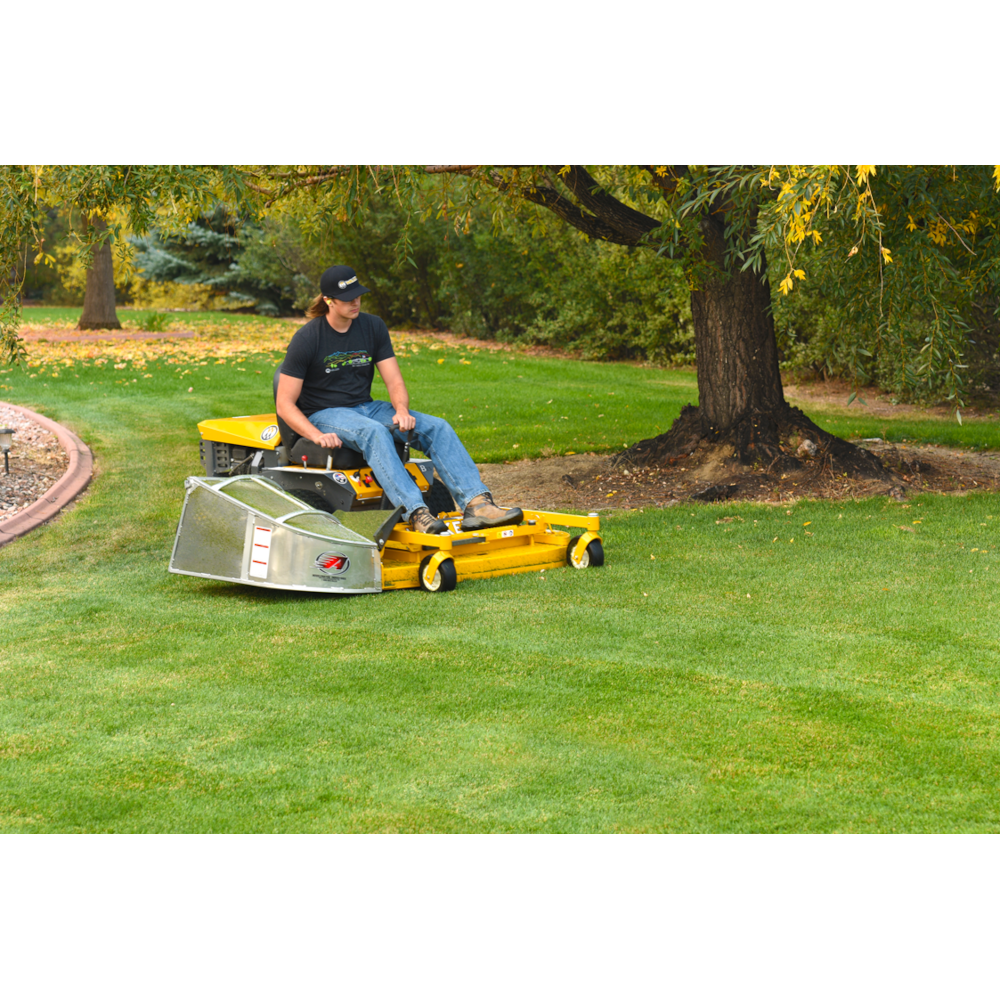

The Walker B23 Tractor can be combined with a mower attachment to make the Walker B23 Mower using any one of their wide selection of mower attachments. The Model B is compact and fast. This Walker Mower is designed to run side discharge and mulch decks on complex properties with hills, uneven terrain, and obstacles while leaving a beautiful cut.
A simplified design with improved performance

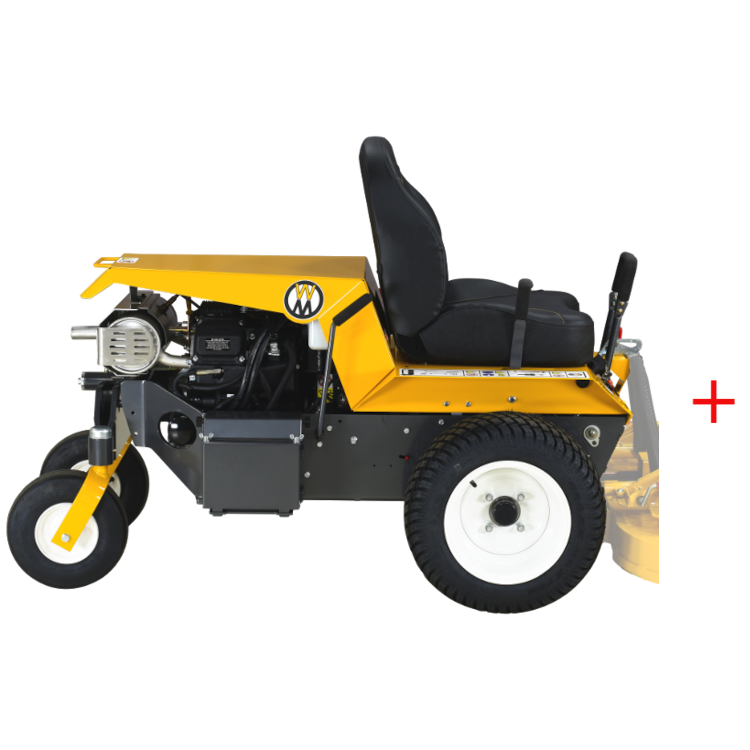

Walker B23 Tractor Overview
Perfect for users looking for carbureted, commercial mowing power, the Walker B23 packs much muscle into a compact footprint. It features a new chassis and body design, reducing weight and accentuating hillside stability, as well as Walker’s beautiful cut.
Type: Non-Collection
Power: 22.5 HP
Engine: Kohler
Ideal Application: Commercial and Rural Properties
Key Attributes: Hillside Stability, Efficiency, High Production
Standard Options: 18 x 10.5-10LP Turf Tire, Comfort Seat
- Engine: Kohler CH680
- Fuel System: Carb
- Cooling System: Air
- Displacement: 674 cc (41.1 cu. in) cc
- Max Power: 22.5 HP @ 3600 RPM
- Max Torque: 36.8 ft-lbs
- Fuel Capacity; 4.7 gals (17.8 liters)
- Seat: Comfort Seat
- Tires: 18 x 10.5-10 LP Turf Tire
- Weight: 610 lbs (277 kg)[1], 848 lbs (385 kg)[3]
- Dimensions: 39.5 in (100 cm)” H x 49 in (125 cm)” W x 90.75 in (230 cm)” L[2]
[1] Tractor only. [2] Tractor with M48 deck. [3] Tractor with M52 deck.
Entire Tractor: 2 Years
Drive Train: 2 Years or 2000 Hrs (whichever occurs first)*
Engine: 3 Years
*Gear Axle Assembly, Hydrostatic Transmissions for C, D, T and Hydrostatic Transaxles for B, H, S, R
Flysheet: Walker Model B23-16
