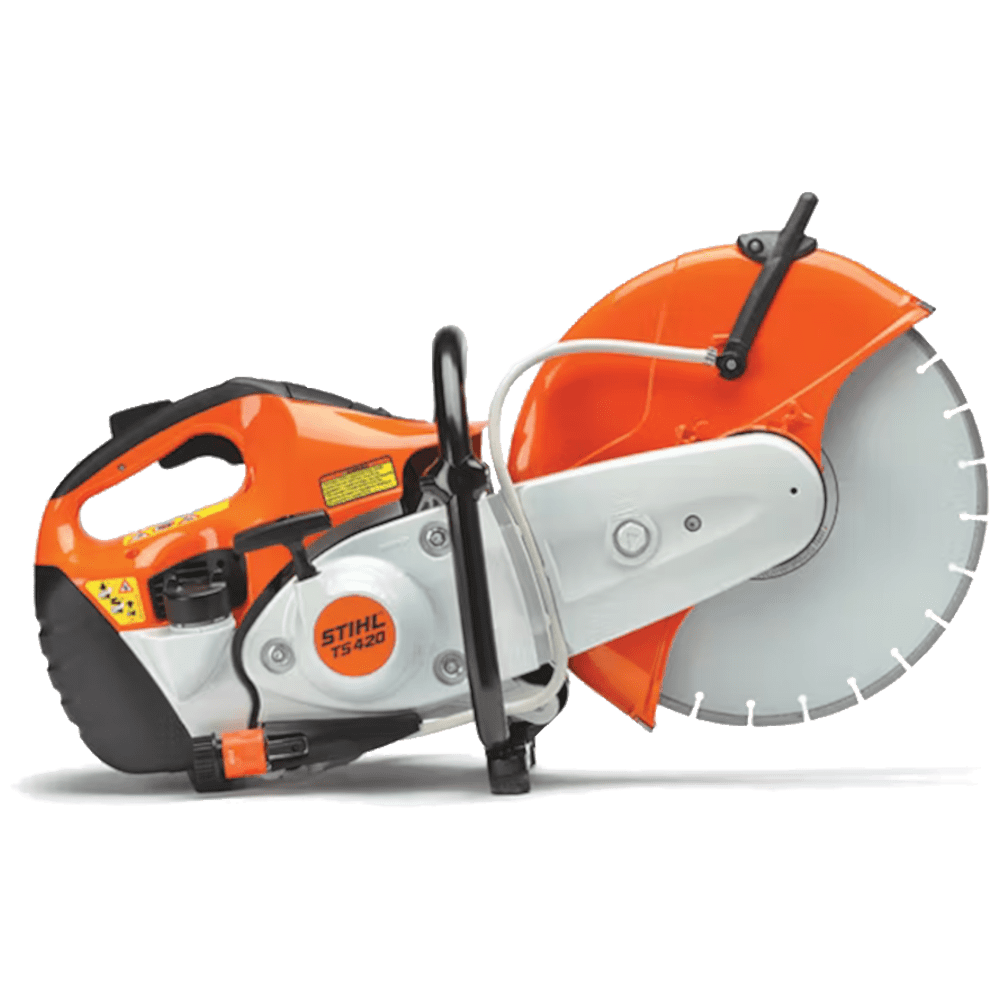

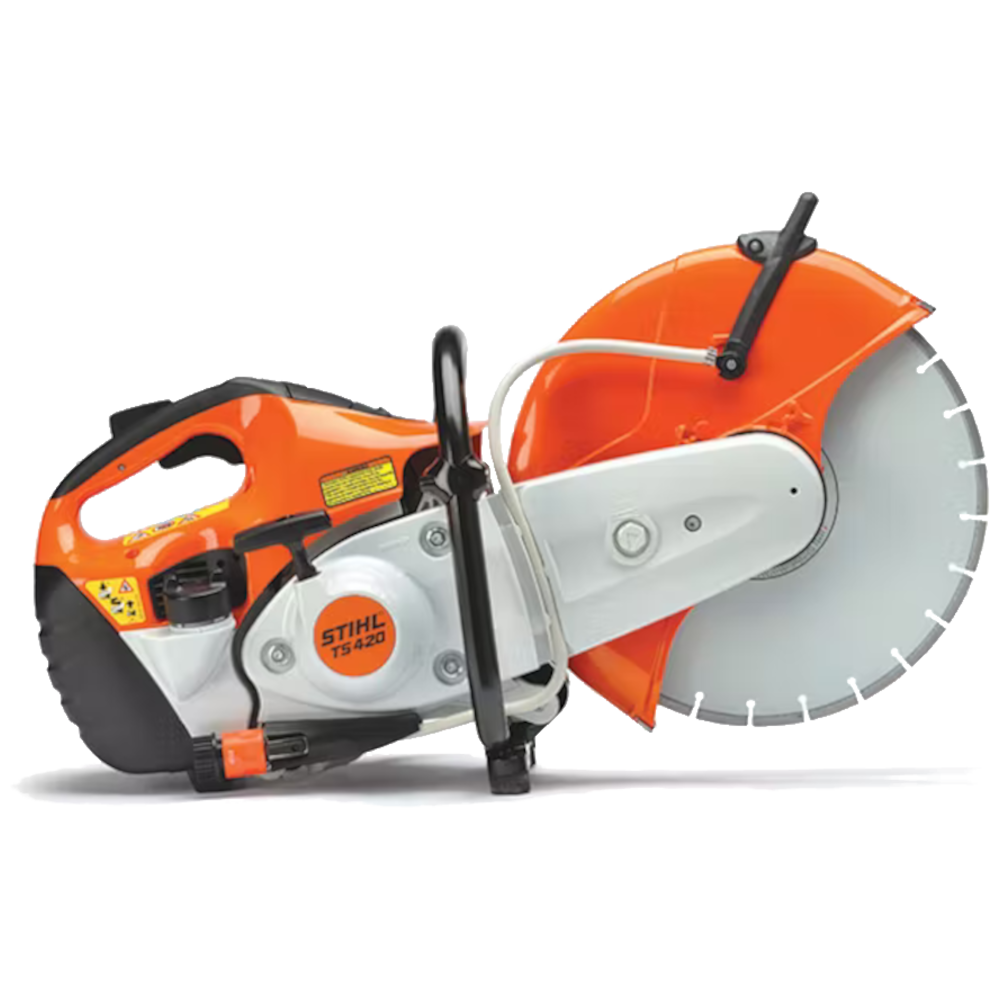

Stihl TS 420 Cutquik® Cutoff Saw

Stihl TS 420 uses patented technology, keeping the TS 420 working longer than previous units.

The STIHL TS 420 Cutquik® cut-off machine is one of the best we’ve ever built. It will help you work longer and more comfortably. This Stihl TS 420 cut-off machine comes with a 14″ wheel, delivering a unique blend of performance and efficiency so you get the job done right. With the revolutionary X2 air filtration system, an anti-vibration system, and a lightweight design, you get low maintenance and more maneuverability. Its advanced engine technology also increases fuel efficiency and reduces emissions.

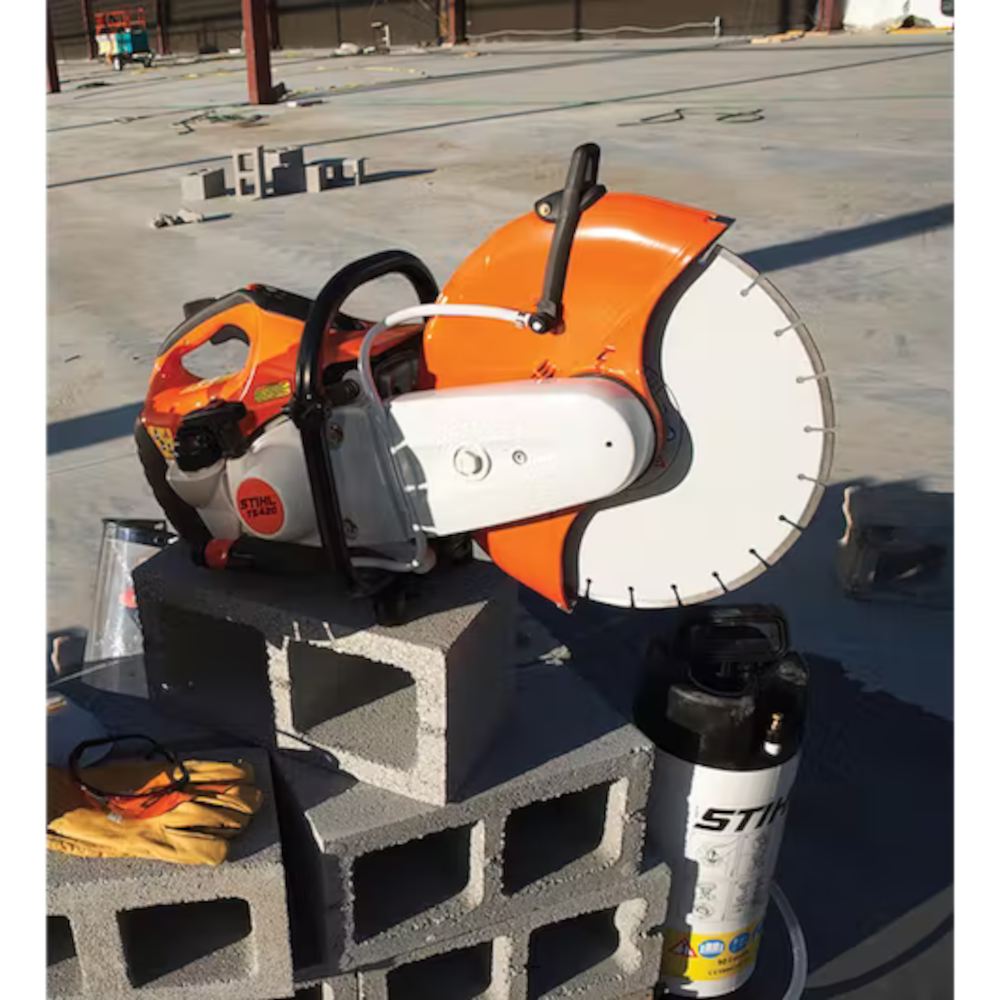

(Abrasive wheel included. Diamond wheel (shown) is sold separately.)

Features
Specifications
Features

• Semi-Automatic Belt Tensioning
  With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings.­
• Bayonet-Style Filler Cap
  It includes a retainer for easy use, even with gloves on.
• IntelliCarb™ Compensating Carburetor
  The IntelliCarb™ Compensating Carburetor is designed to adjust the air/fuel ratio automatically when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in airflow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.

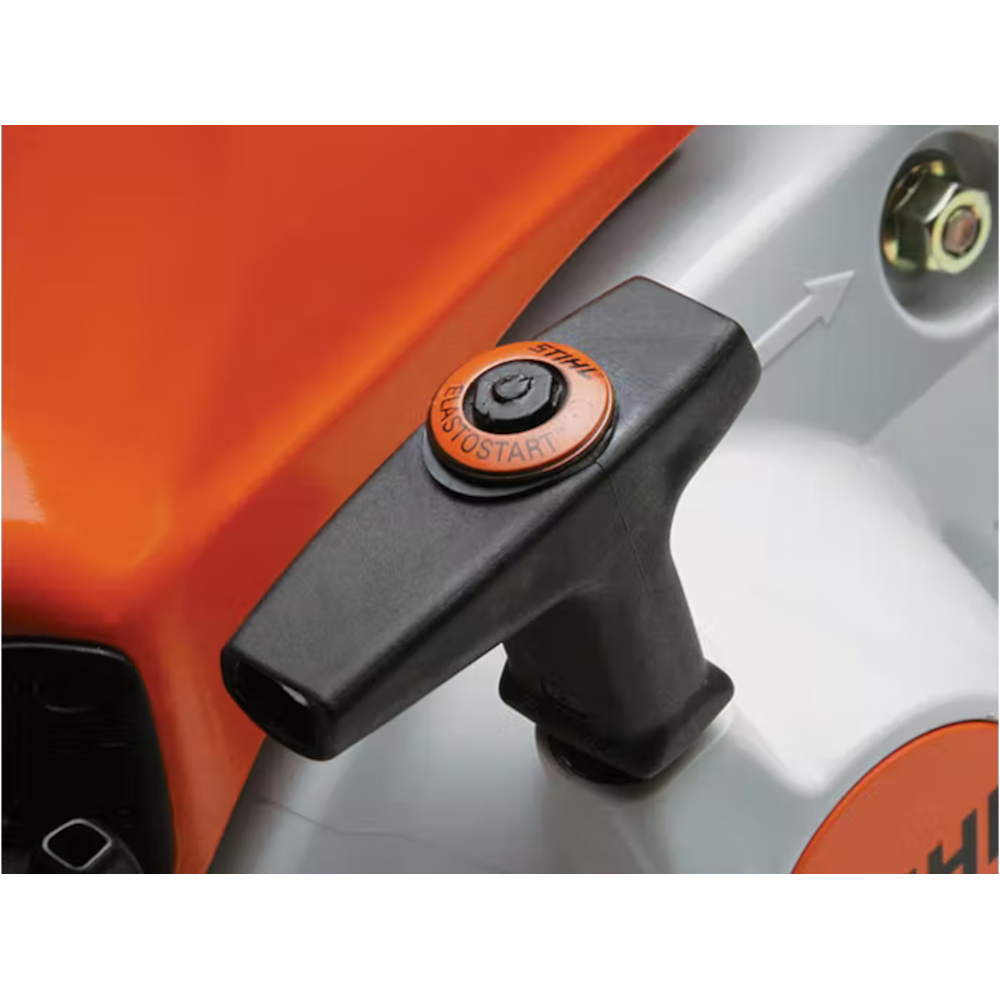

• STIHL ElastoStart™
  The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) usually felt during cranking. The force at the grip after the first compression stroke is smoothed out.

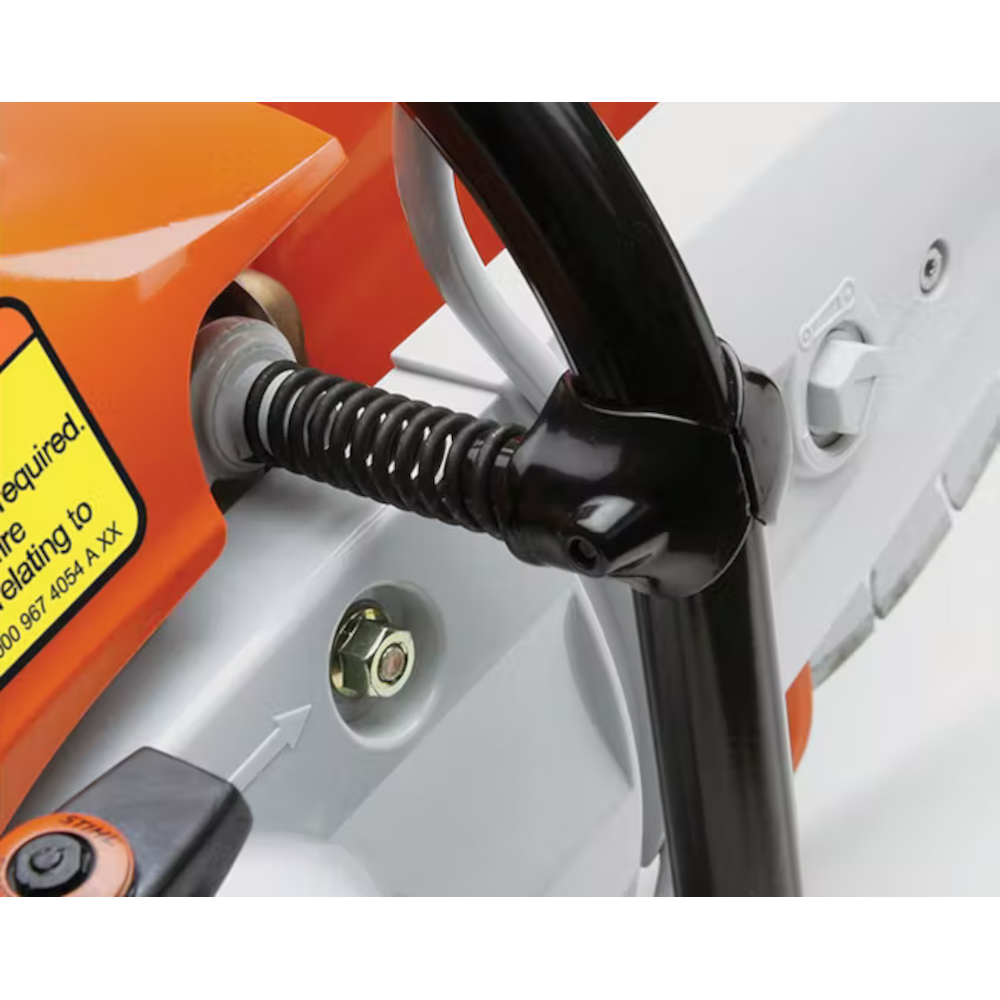

• Anti-Vibration System
  STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• Ergonomic Grip
  The ergonomic top-handle bar design provides an optimal, comfortable grip in any working position.

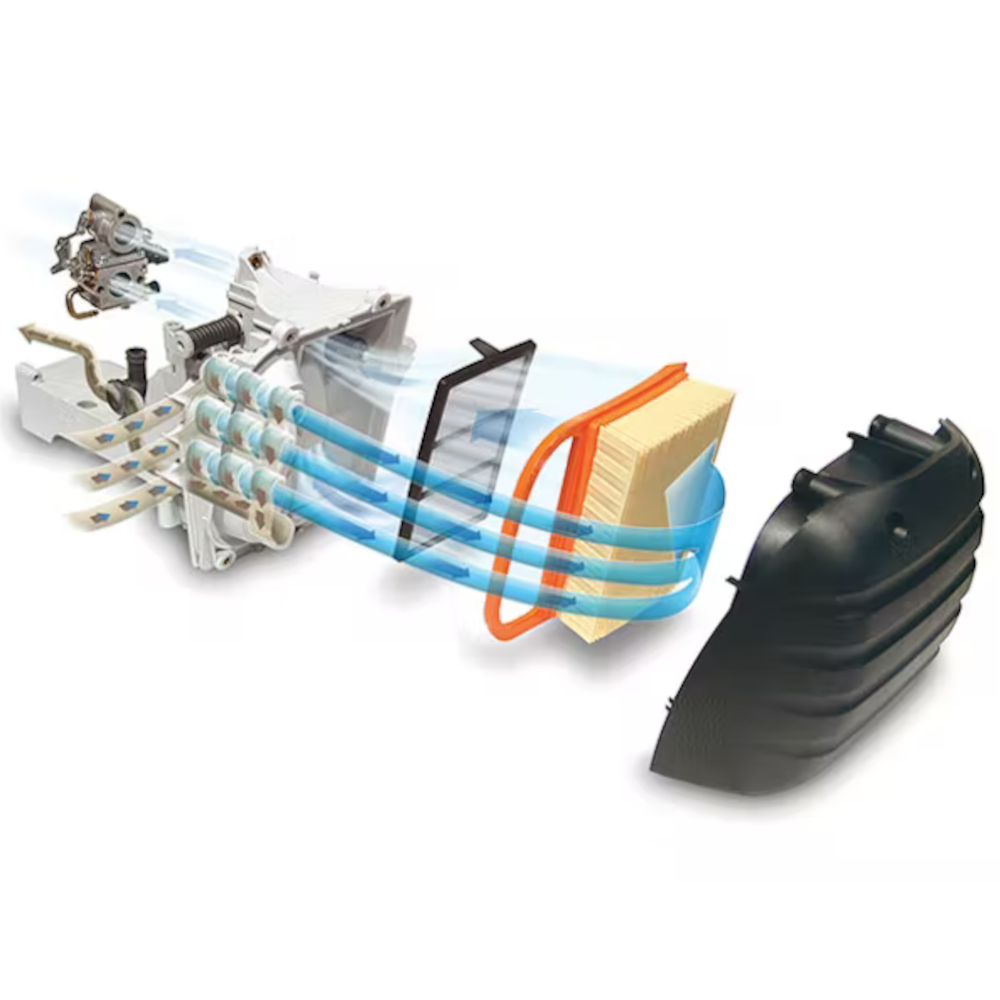

• X2 Air Filtration System
  The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system swirling, removing 80% of dust particles. This pre-cleaned air is routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance-free and maintains an incredible 99.96% cleaning efficiency.
• Reduced-Emission Engine Technology – Caring for Nature
  The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as cleaner than EPA and/or CARB exhaust emission standards.
• Water Connection
  Water connection with shut-off valve and quick connector.

Specifications

Note: This product is for professional use only. The weight displayed is dry weight, including water attachment and guard. Shown with optional STIHL diamond wheel.
