Description

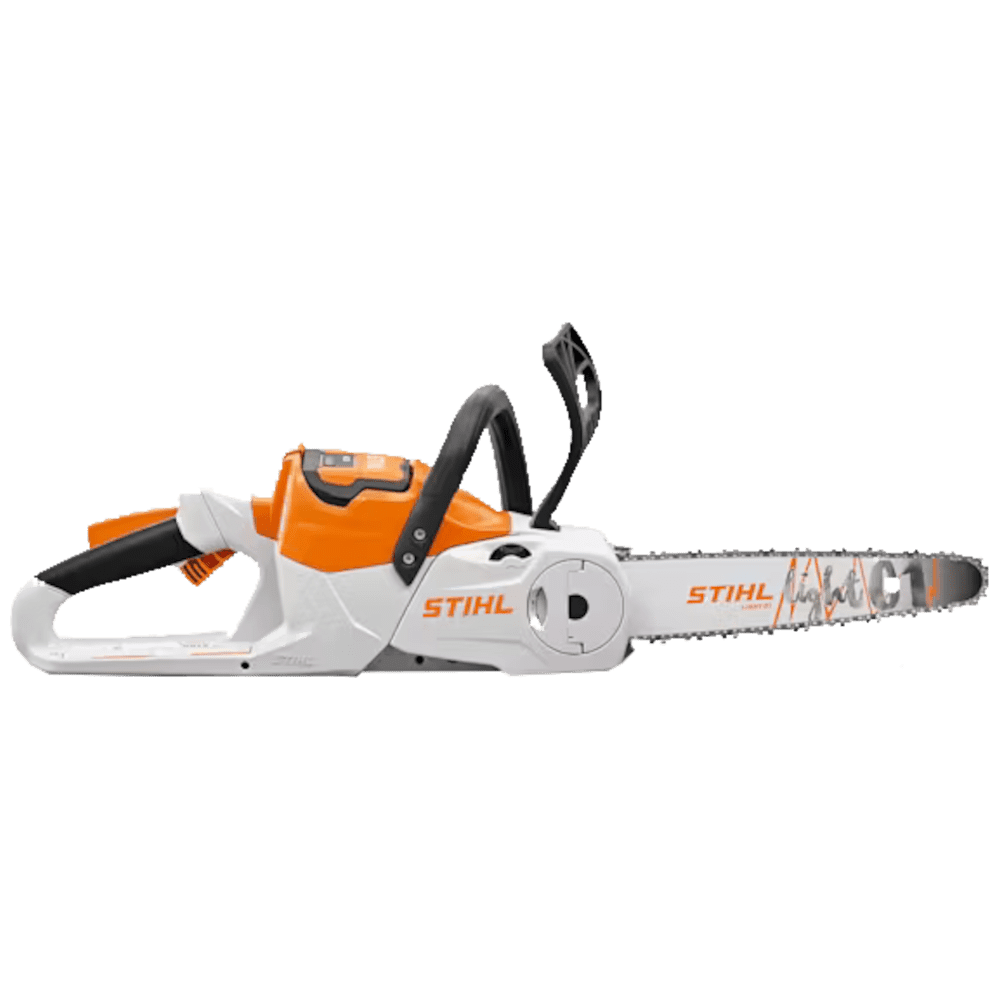

The Stihl MSA 60 C-B is the lightest battery chainsaw in the STIHL lineup, replacing the MSA 120 C-B. It provides powerful performance along with lightweight convenience for the home.
The Stihl MSA 60 C-B is the lightest chainsaw in the STIHL AK Homeowner Battery System. It packs powerful performance in a convenient, lightweight package—ideal for general yard maintenance and firewood cutting. This chainsaw features long run times for homeowners, up to 40 minutes when paired with the AK 20 battery.
Run time may vary based on battery type, charge level and capacity, model, operating style, and conditions. Batteries and chargers can be purchased separately or as a combined set with a tool.
Stihl MSA 60 C-B Features
- Brushless Motor
- Ematic™ Lubrication System
- STIHL Electric Motor
- Quick Chain Adjuster (QCA) (B)
Recommended battery is AK 20 and the AL 101 Charger.
See run times in Specifications.
| MSA 60 C-B Specifications | |
|---|---|
| POWER SOURCE | Battery |
| POWERHEAD WEIGHT | 6.4 lbs. |
| WEIGHT (w/ AK 20) | 9 lbs. |
| GUIDE BAR LENGTH (Recommended) | 12 in. |
| OILOMATIC® CHAIN | ¼” PM3 |
| CHAIN OIL CAPACITY | 3.7 oz. |
| BATTERY SYSTEM | AK System |
| RUN TIME (w/ AK 20) UP TO | 40 min. |
| VOLTAGE | 36 volt |
| INTENDED USE | Homeowner |
| Note: STIHL recommends #3670 (71 PM3 64) OILOMATIC® saw chain and 12" guide bar combination. Compatible guide bar ranges: 10" to 12". Chainsaw weights include recommended bar and chain combination. The battery working time specifications for each battery charge are estimates and may vary depending on how the tool is used and what is being cut. | |

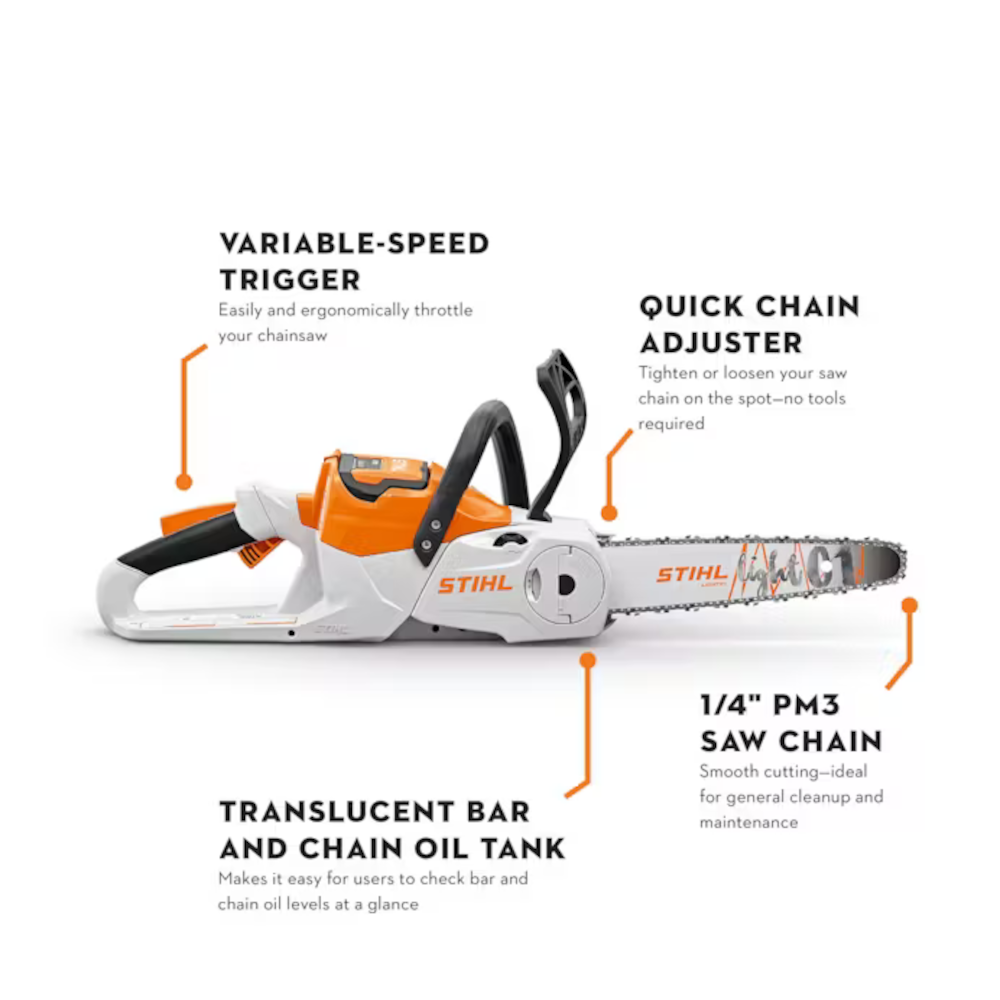

Model Features
-
Ematic™ Lubrication System – The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
-
STIHL Electric Motor – Lightweight and compact, STIHL electric motors require minimal maintenance and feature low noise levels and reduced vibration.
-
Quick Chain Adjuster (QCA) (B)—The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without tools, making chain adjustment easy.
-
Translucent Bar and Chain Oil Tank – The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
-
Lightweight Portability – This product is lightweight for easy portability, excellent maneuverability, and extended use.
-
Rubberized Soft-Touch Handle—The soft rubber texture is easy to grip and makes the product comfortable to hold for extended periods.
-
Variable-Speed Trigger – The variable-speed trigger allows precise control for each task.
Throttle Trigger Interlock – This safety feature must be depressed before the trigger can be activated. -
STIHL Quickstop® – STIHL chainsaws are equipped with a chain-stopping system to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the chain’s rotation if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
-
Reduced-Emission Engine Technology—Caring for Nature—The STIHL I” c. “Caring for Na “ure” seal identifies its powered products as more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as cleaner than EPA and CARB exhaust emission standards.
-

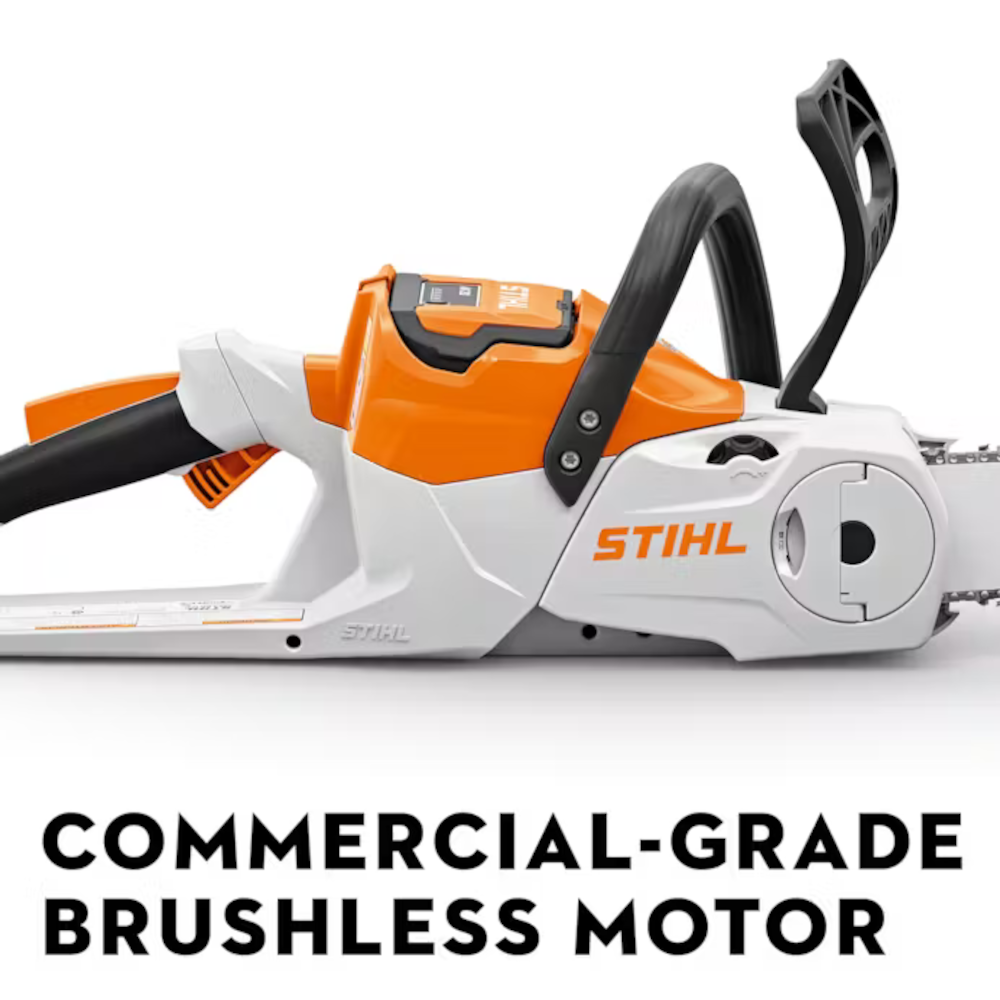

Brushless Motor – The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL.
AK Series Battery Specifications
| AK Series Batteries | AK 10 | AK 20 | AK 30 |
|---|---|---|---|
| Weight | 0.8 kg (1.8 lbs.) | 1.2 kg (2.7 lbs.) | 1.2 kg (2.9 lbs.) |
| Battery Energy Content | 54 Wh | 108 Wh | 187 Wh |
| Rated Voltage | 36 volt | 36 volt | 36 volt |
| Battery Capacity | 1.4 Ah | 2.8 Ah | 5.2 Ah |
| *Stored energy. Usable energy will be less. | |||
AK Series Battery Charging Times
Battery Charging Time - Minutes (80%/100 % Capacity)| AK Series Batteries | AK 10 | AK 20 | AK 30 |
|---|---|---|---|
| AL 101 | 70 Min. / 95 Min. | 135 Min. / 180 Min. | 160 Min. / 205 Min. |
| AL 301 | 30 Min. / 45 Min. | 35 Min. / 55 Min. | 35 Min. / 60 Min. |
| AL 301-4 | 30 Min. / 45 Min. | 35 Min. / 55 Min. | 35 Min. / 60 Min. |
| AL 500 | 30Min. / 45 Min. | 35 Min. / 55 Min. | 35 Min. / 60Min. |
AK Series Battery Run Times by Unit
| Tool | Recommended Battery | Recommended Charger | Charging Time | Run Time per charge* |
|---|---|---|---|---|
| BGA 57 Blower | AK 20 | AL 101 | 180 MIN. | Up to 25 MIN. |
| BGA 60 Blower | AK 30 | AL 101 | 205 MIN. | Up to 16 MIN. |
| FCA 80 Edger | AK 30 | AL 101 | 205 MIN. | Up to 30 MIN. |
| FSA 57 Trimmer | AK 20 | AL 101 | 180 MIN. | Up to 50 MIN. |
| FSA 60 R Trimmer | AK 20 | AL 101 | 180 MIN. | Up to 25 MIN. |
| FSA 80 Trimmer | AK 20 | AL 101 | 180 MIN. | Up to 25 MIN. |
| FSA 80 R Trimmer | AK 30 | AL 101 | 180 MIN. | Up to 30 MIN. |
| HLA 56 Hedge Trimmer | AK 20 | AL 101 | 180 MIN. | Up to 100 MIN. |
| HSA 50 Hedge Trimmer | AK 10 | AL 101 | 180 MIN. | Up to 50 MIN. |
| HSA 60 Hedge Trimmer | AK 10 | AL 101 | 95 MIN. | Up to 70 MIN. |
| HTA 50 Pole Pruner | AK 20 | AL 101 | 180 MIN. | Up to 45 MIN. |
| KMA 80 (W/FS KM Line Head) Combi | AK 30 | AL 101 | 205 MIN. | Up to 25 MIN. |
| MSA 60 C-B Chainsaw | AK 20 | AL 101 | 180 MIN. | Up to 40 MIN. |
| MSA 70 C-B Chainsaw | AK 30 | AL 101 | 205 MIN. | Up to 45MIN. |
| RMA 460 Mower | AK 30 | AL 101 | 205 MIN. | 2,852 SQ. FT. Working Range |
| RMA 460 V Self-Propelled Mower | AK 30 | AL 101 | 205 MIN. | 2,347 SQ. FT. Working Range |
| SHA 56 Vacuum/Shredder | AK 20 | AL 101 | 180 MIN. | Up to 25 MIN. |
