Description

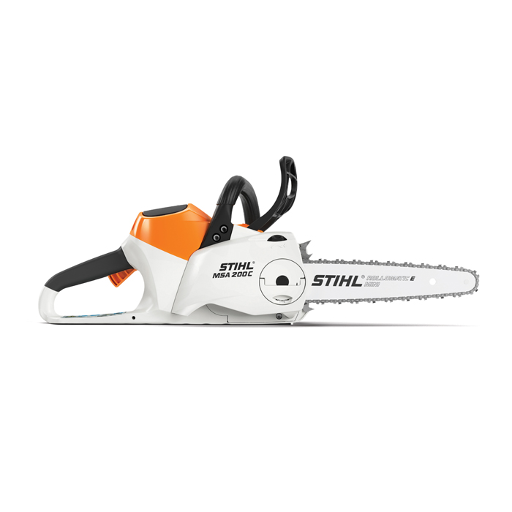

The Stihl MSA 200 C-BQ is a more potent, capable lithium-ion chainsaw ideal for noise-restricted areas.
Squeeze the trigger with the Stihl MSA 200 C-BQ chainsaw and start cutting. In addition to easy starting, our battery-powered tools produce zero emissions. They are quieter than their gasoline-powered counterparts, making them an ideal choice for areas with emission or noise restrictions. Powered by an interchangeable STIHL Lithium-Ion battery, this chainsaw delivers enough power to take on just about any cutting job on your property.
The listed guide bar length can vary from the effective cutting length depending on which powerhead it is installed on. Run time may also vary depending on battery type, charge level and capacity, model, operating style, and conditions. Batteries and chargers can be purchased separately or as a combined set with a tool.
| MSA 200 C-B Specifications | |
|---|---|
| GUIDE BAR LENGTHS (Recommended ranges) | 25 to 35 cm (10" to 14") ROLLOMATIC® E Mini |
| CHAIN OIL CAPACITY | 210 cc (7.1 oz.) |
| OILOMATIC® CHAIN | 1/4" STIHL PICCO™ |
| POWER SOURCE | Battery |

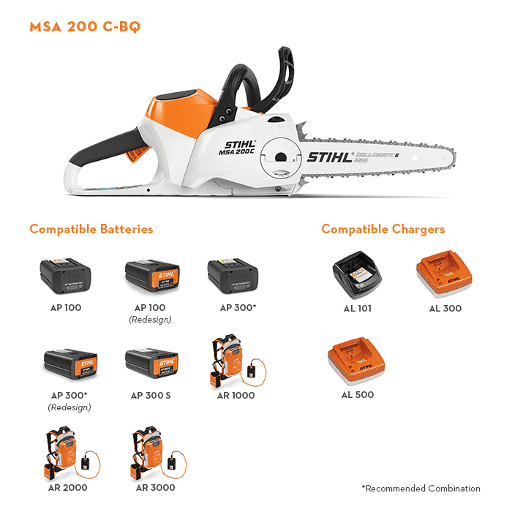

| BATTERY SERIES | AP Series |
| POWERHEAD WEIGHT (w/ Recommended Battery) | w/ AP 300 4.6 kg (10.2 lbs.) |
| RUN TIME (w/ AP 100) | Up to 15 minutes |
| RUN TIME (w/ AP 300) | Up to 45 Minutes (Recommended Battery) |
| RUN TIME (w/ AR 1000) | Up to 110 minutes |
| RUN TIME (w/ AR 2000) | Up to 160 minutes |
| RUN TIME (w/ AR 3000) | Up to 200 minutes |
| STIHL recommends #3670 (71 PM3 72) OILOMATIC® saw chain and 14" 3005 008 3409 STIHL ROLLOMATIC® E guide bar combination. The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on. Chainsaw weights include recommended bar and chain combination. Batteries and chargers can be purchased separately or as a combined set with tool. | |
| AP 100 Black | AP 100 Orange | AP 200 | AP 300 | AP 300S | AP 500S | |
|---|---|---|---|---|---|---|
| Battery Charging Time (Minutes for 80% / 100% Charge) | ||||||
| AL 101 Charger | 60/90 | 75/100 | 150/200 | 190/250 | 230/300 | 280/355 |
| AL 301 Charger | 25/35 | 30/45 | 40/55 | 50/75 | 55/80 | 70/90 |
| AL 301 4 place Charger | 40/55 | 50/75 | 55/80 | 70/90 | ||
| AL 500 Charger | 25/35 | 30/45 | 30/45 | 30/45 | 40/55 | |
| AR 1000 | AR2000 | AR3000 | |
|---|---|---|---|
| Battery Charging Time (Minutes for 80% / 100% Charge) | |||
| AL 300 Charger | 130/160 | 190/215 | 220/265 |
| AL 500 Charger | 90/120 | 100/130 | 120/160 |
Model Features
- Reduced-Emission Engine Technology – Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as cleaner than EPA and CARB exhaust emission standards. More Information - STIHL Quickstop® Plus (Q) – an additional chain braking feature
STIHL offers an additional, manually activated chain brake on some models. This system is designed to engage when the operator’s right hand completely releases the rear handle, stopping the chain within one second. Available on some models. See it in action! - STIHL Quickstop®
STIHL chainsaws are equipped with a chain-stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the chain’s rotation if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second. See it in action! - Ematic™ Lubrication System
The Ematic™ guide bar, when used with the STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%. - STIHL Electric Brushless Motor
Lightweight and compact, STIHL electric motors require minimal maintenance and feature low noise levels and reduced vibration. - Quick Chain Adjuster (QCA) (B)
The Quick Chain Adjuster (QCA) (B) allows the user to adjust the chain’s tension without tools, making chain adjustment easy. - Rubberized Soft Touch Handle
Soft rubber texture is easy to grip, making the product comfortable for extended periods. - Coast-down Brake
A controlled braking device (Q) stops the rotating chain when the trigger is released.
Standard Features
- Common Features of Chainsaws
View the features common to many STIHL chainsaws.
