Description

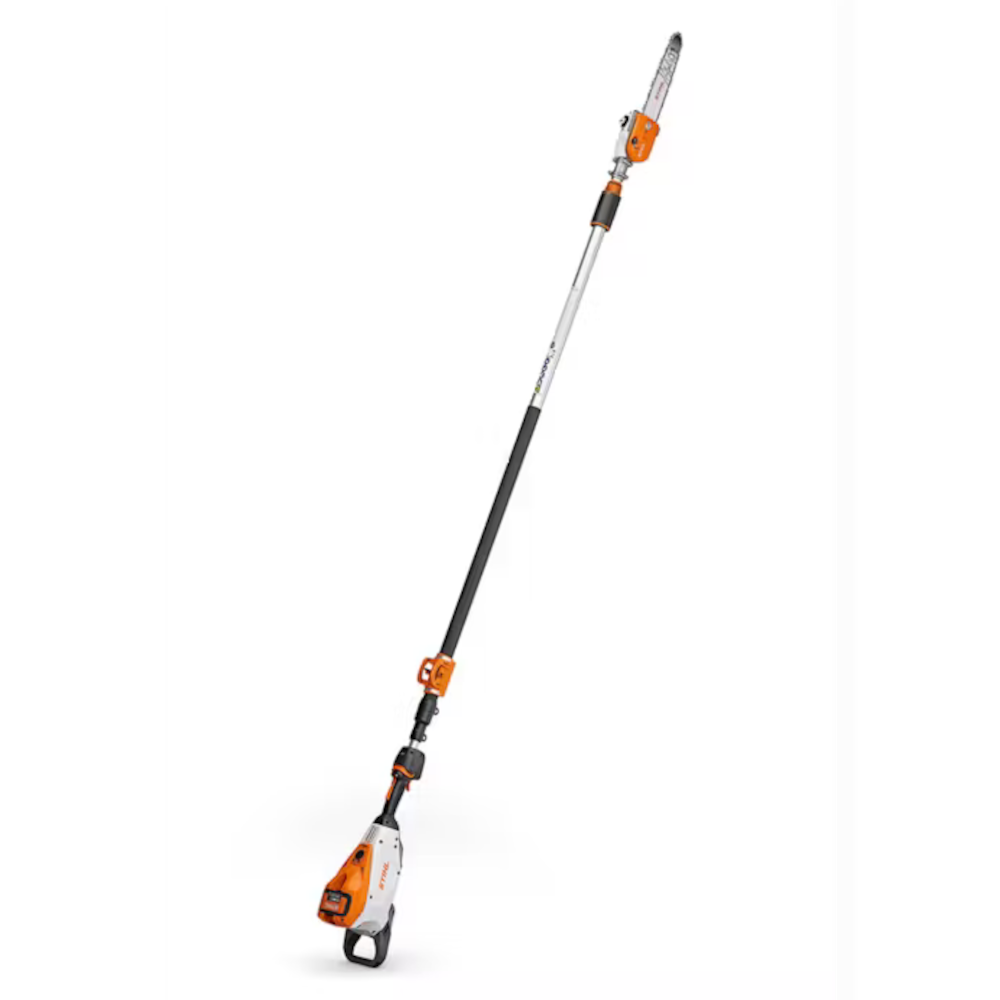

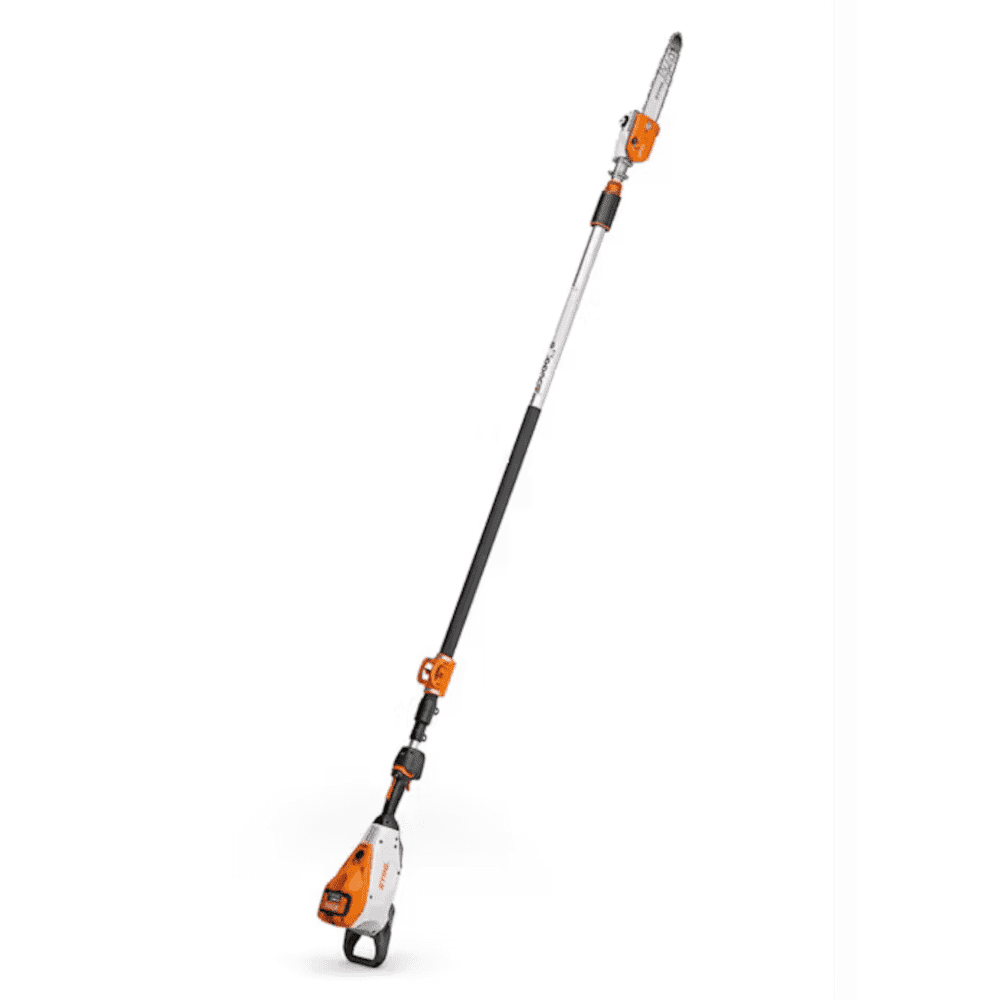

The Stihl HTA 135 Pole Saw is a pro-grade battery-powered telescoping pole pruner with a lightweight, robust design.
With its weather-resistant, high-performance design, the STIHL HTA 135 pole saw tackles trimming overhead branches like its gas-powered counterparts with commercial-grade power and durability. It also provides quiet performance and zero exhaust emissions from battery-powered equipment. With durable and field-proven components like a magnesium gearbox and a trusted telescopic shaft, the HTA 135 pole saw gives the cutting performance you expect from STIHL. Its balanced design and ability to quickly and easily extend to over 13 feet help minimize your fatigue. Including a host of professional features, such as a translucent bar and chain oil tank, an included foot mount, an onboard battery slot, and a variable-speed trigger, the Stihl HTA 135 pole saw is a true force for experienced pros and demanding homeowners alike.
This tool is IPX4-rated for weather-resistant construction and has been designed and tested for splash-water protection.
Features

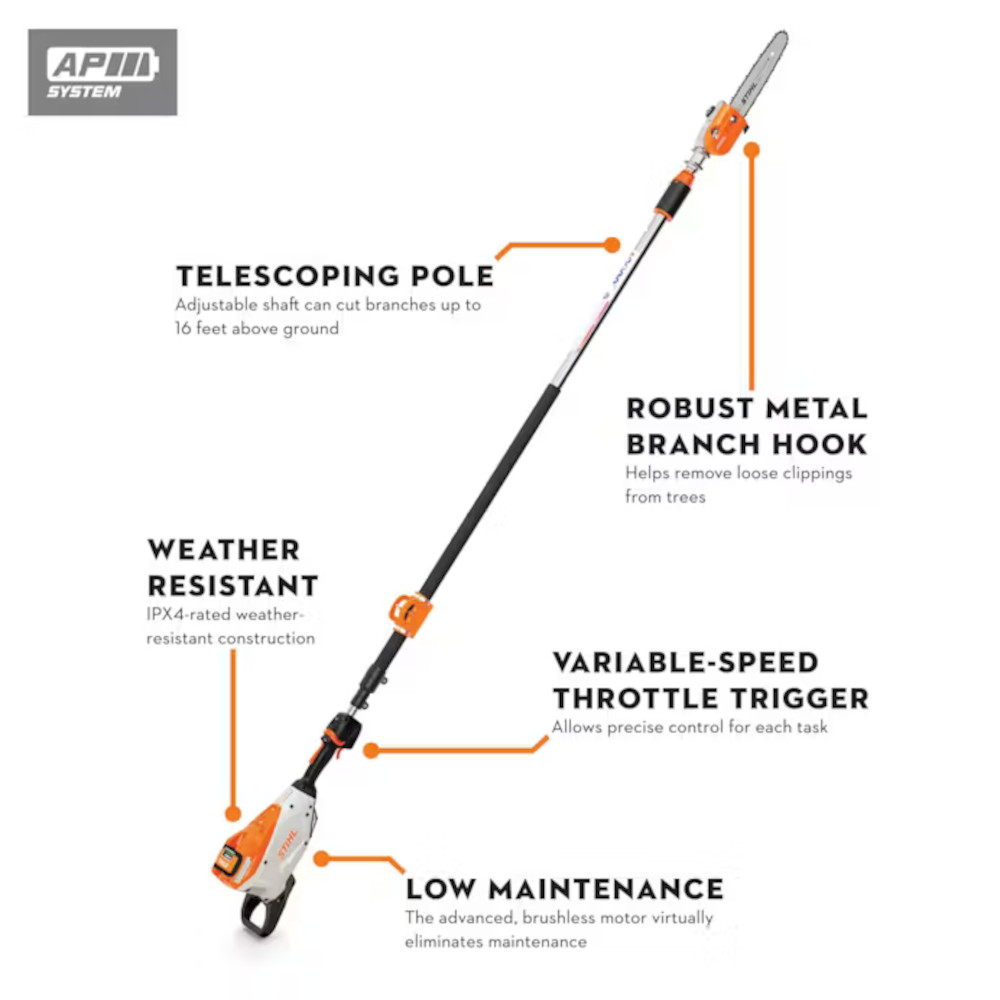

- IPX4 Rating
- Toolless and Translucent Bar and Chain Oil Tank
- Foot Mount Included
- Telescoping Pole
Model Features
- IPX4 Rating – This tool is IPX4-rated for weather-resistant construction and has been designed and tested for splash-water protection.
- Toolless and Translucent Bar and Chain Oil Tank – The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
- Foot Mount Included—The foot mount provides added stability for resting the machine on the ground and protects the motor housing.
- Telescoping Pole – With an adjustable shaft, telescoping pole pruners can cut branches up to 16 feet above ground.
- Onboard Metal Air Filter—The durable metal air filter circulates cool, clean air around the motor and electronics.
- Efficient and Virtually Maintenance-Free Motor—The brushless motor is ideal for noise-sensitive environments; virtually zero maintenance is required.
- Compact, Ergonomic Design – The compact, ergonomic design provides more comfortable use.
- Side Access Chain Tensioner – More convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
- Retaining Latch—All STIHL battery-powered products feature a retaining latch designed to prevent the unit from starting unintentionally when the battery is inserted.
- Variable-Speed Trigger – The variable-speed trigger allows precise control for each task.
- Multi-Function Control Handle—Easy access to all controls on one comfortable handle makes it easier to complete tasks, so the operator’s hand never has to leave the handle.
- High-Tech Polymer Housings – Housings are lightweight, withstand more significant impact, and are corrosion-resistant.
- Reduced-Emission Engine Technology—Caring for Nature—The STIHL Inc. “Caring for Nature” seal identifies its powered products as more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as cleaner than EPA and CARB exhaust emission standards.
- Made in America—Most STIHL products sold in America are made in America of U.S. and global materials.
View Our Usage Chart
HTA 135 Pole Saw Specifications |
POWER SOURCE | Battery |
POWERHEAD WEIGHT | 15 lbs. |
WEIGHT (w/ AP 500 S) | 19 lbs. |
GUIDE BAR LENGTH (Recommended) | 10 in. |
OILOMATIC® CHAIN | 3/8" STIHL PICCO™ |
OVERALL LENGTH | 160 in. |
BATTERY SYSTEM | AP System |
RUN TIME (w/ AP 300 S) UP TO | 45 min. |
VOLTAGE | 36 volt |
Note: The battery working time specifications for each battery charge are estimates and may vary depending on how the tool is used and what is being cut. Weight displayed includes cutting attachment. The actual listed guide bar length can vary from the effective cutting length based on the gear head design. |
| AP 100 Black | AP 100 Orange | AP 200 | AP 300 | AP 300S | AP 500S |
Battery Charging Time (Minutes for 80% / 100% Charge) |
AL 101 Charger | 60/90 | 75/100 | 150/200 | 190/250 | 230/300 | 280/355 |
AL 301 Charger | 25/35 | 30/45 | 40/55 | 50/75 | 55/80 | 70/90 |
AL 301 4 place Charger | | | 40/55 | 50/75 | 55/80 | 70/90 |
AL 500 Charger | 25/35 | 30/45 | 30/45 | | 30/45 | 40/55 |
| AR 1000 | AR2000 | AR3000 |
Battery Charging Time (Minutes for 80% / 100% Charge) |
AL 300 Charger | 130/160 | 190/215 | 220/265 |
AL 500 Charger | 90/120 | 100/130 | 120/160 |
