Description

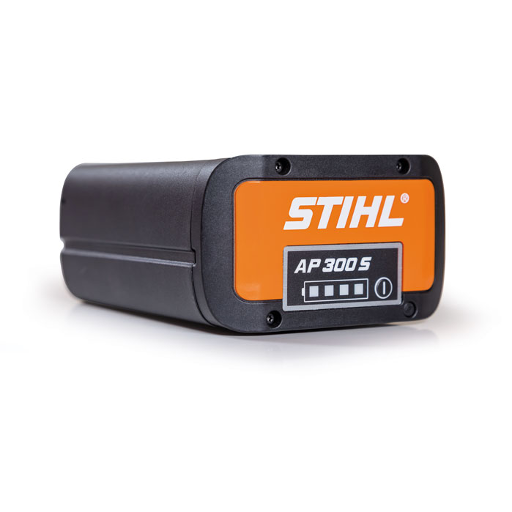

With the Stihl AP 300 S Battery, you can get long run times out of your tools with the AP 300 S Lithium-Ion Battery.
The Stihl AP 300 S Battery offers greater capacity to cover your needs for the bigger jobs from STIHL. The AP 300 S features a 25 percent increase in battery capacity over the AP 300, equaling a 25 percent longer run time, an enhanced power-to-weight ratio, and only 3.9 pounds. Water-resistant*, the Stihl AP 300 S Battery is compatible with various tools, including extended-reach hedge trimmers, pole pruners, chainsaws, and blowers. Knock out tasks like storm cleanup faster with STIHL’s professional-level Stihl AP 300 S battery performance. Visit our dealership today to see the AP 300 S and the full line of STIHL battery products.
*When paired with a tool suitable for wet or rainy conditions. After use, drying devices ideal for rainy or wet conditions would be best.
AP Series Battery Specifications
| AP Series Batteries | AP 100 | AP 200 | AP 300 | AP 300S | AP 500S |
|---|---|---|---|---|---|
| Weight | 1.8 lbs. | 2.9 lbs. | 3.8 lbs. | 3.96 lbs | 4.2 lbs. |
| Battery Energy Content | 94 Wh | 187 Wh | 227 Wh | 281 Wh | 337 Wh |
| Rated Voltage | 36 volt | 36 volt | 36 volt | 36 volt | 36 volt |
| Battery Capacity | 2.6 Ah | 4.8 Ah | 6.0 Ah | 7.2 Ah | 9.4 Ah |
| *Stored energy. Usable energy will be less. | |||||
| AP 100 Black | AP 100 Orange | AP 200 | AP 300 | AP 300S | AP 500S | |
|---|---|---|---|---|---|---|
| Battery Charging Time (Minutes for 80% / 100% Charge) | ||||||
| AL 101 Charger | 60/90 | 75/100 | 150/200 | 190/250 | 230/300 | 280/355 |
| AL 301 Charger | 25/35 | 30/45 | 40/55 | 50/75 | 55/80 | 70/90 |
| AL 301 4 place Charger | 40/55 | 50/75 | 55/80 | 70/90 | ||
| AL 500 Charger | 25/35 | 30/45 | 30/45 | 30/45 | 40/55 | |
AP Series Battery Run Times by Unit
| Tool | Recommended Battery | Recommended Charger | Charging Time | Run Time per charge* |
|---|---|---|---|---|
| MSA 160 C Chainsaw | AP 300 S | AL 500 | 45 MIN. | Up to 62 MIN. |
| MSA 161 T Chainsaw | AP 200 | AL 500 | 45 MIN. | Up to 42 MIN. |
| MSA 200 C Chainsaw | AP 300 S | AL 500 | 45 MIN. | Up to 50 MIN. |
| MSA 220 C Chainsaw | AP 300 S | AL 500 | 45 MIN. | Up to 40 MIN. |
| MSA 220 TC-O Chainsaw | AP 300 S | AL 500 | 45 MIN. | Up to 29 MIN. |
| MSA 300 C-O Chainsaw | AP 500 S | AL 500 | 55 MIN. | Up to 44 MIN. |
| FSA 86 R Trimmer | AP 200 | AL 500 | 45 MIN. | Up to 30 MIN. |
| FSA 90 R Trimmer | AP 300 S | AL 500 | 45 MIN. | Up to 37 MIN. |
| FSA 135 Trimmer | AP 300 S | AL 500 | 45 MIN. | Up to 45 MIN. |
| FSA 135 R Trimmer | AP 300 S | AL 500 | 45 MIN. | Up to 45 MIN. |
| FCA 135 Edger | AP 300 S | AL 500 | 45 MIN. | Up to 45 MIN. |
| FCA 140 Edger | AP 300 S | AL 500 | 45 MIN. | Up to 45 MIN. |
| BGA 86 Blower | AP 300 S | AL 500 | 45 MIN. | Up to 26 MIN. |
| BGA 100 Blower | AR 3000 L | AL 500 | 220 MIN. | Up to 510 MIN. |
| BGA 200 Blower | AR 3000 L | AL 500 | 220 MIN. | Up to 500 MIN. |
| BGA 300 Blower | AR 3000 L | AL 500 | 220 MIN. | Up to 140 MIN. |
| HSA 66 Hedge Trimmer | AP 200 | AL 500 | 45 MIN. | Up to 144 MIN. |
| HSA 94 R Hedge Trimmer | AR 2000 L | AL 500 | 150 MIN. | Up to 550 MIN. |
| HSA 94 T Hedge Trimmer | AR 2000 L | AL 500 | 150 MIN. | Up to 550 MIN. |
| HSA 100 Hedge Trimmer | AP 200 | AL 500 | 45 MIN. | Up to 125 MIN. |
| HSA 130 R Hedge Trimmer | AR 2000 L | AL 500 | 150 MIN. | Up to 550 MIN. |
| HSA 130 T Hedge Trimmer | AR 2000 L | AL 500 | 150 MIN. | Up to 550 MIN. |
| HLA 66 Hedge Trimmer | AP 200 | AL 500 | 45 MIN. | Up to 145 MIN. |
| HLA 86 Hedge Trimmer | AP 200 | AL 500 | 45 MIN. | Up to 145 MIN. |
| HLA 135 K 0° Hedge Trimmer | AP 200 | AL 500 | 45 MIN. | Up to 64 MIN. |
| HLA 135 K 145° Hedge Trimmer | AP 200 | AL 500 | 45 MIN. | Up to 64 MIN. |
| HLA 135 145° Hedge Trimmer | AP 200 | AL 500 | 45 MIN. | Up to 64 MIN. |
| HTA 66 Pole Pruner | AP 200 | AL 500 | 45 MIN. | Up to 42 MIN. |
| HTA 86 Pole Pruner | AP 200 | AL 500 | 45 MIN. | Up to 42 MIN. |
| HTA 135 Pole Pruner | AP 300 S | AL 500 | 45 MIN. | Up to 45 MIN. |
| KMA 130 R Kombi Powerhead | AP 300 S | AL 500 | 45 MIN. | Up to 47 MIN. (W/LINE HEAD ATTACH) |
| KMA 135 Kombi Powerhead | AP 300 S | AL 500 | 45 MIN. | Up to 47 MIN. (W/LINE HEAD ATTACH) |
| RMA 510 Lawnmower | AP 300 S | AL 500 | 45 MIN. | 3,767 SQ. FT. (WORKING RANGE) |
| RMA 510 Self-Propelled Lawnmower | AP 300 S | AL 500 | 45 MIN. | 3,186 SQ. FT. (WORKING RANGE) |
| SGA 85 Sprayer | AP 200 | AL 500 | 45 MIN. | Up to 1,000 MIN. |
| TSA 230 Cut-Off Machine | AP 300 S | AL 500 | 45 MIN. | Up to 22 MIN. |
